GATE 2022 AR — Planning – Question 52

Urban Land Use and Transportation · Design of roads, intersections, grade separators and parking areas · 1 mark · Multiple choice

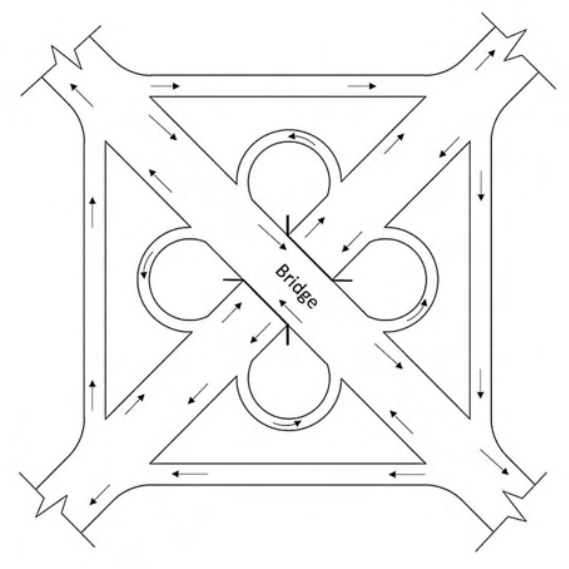

Identify the traffic interchange shown.

Diagram for GATE 2022 AR — Planning question 52

Directional
Trumpet
Clover-leaf
Diamond

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: (C) Clover-leaf

Explanation

Four loop ramps occupy the four quadrants around the grade-separated crossing, forming a clover-leaf interchange, C. A trumpet is normally a three-leg arrangement, while a diamond uses diagonal ramps without the four loops.
