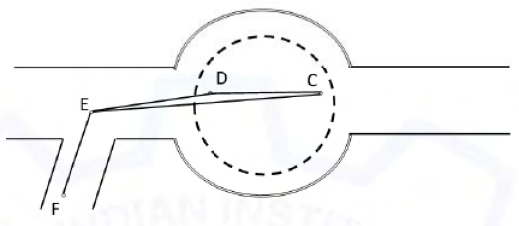

The small-angle sine-rule correction at C is approximately(DE/CD)×40″=(5.46/4.64)×40″=47.069″. The illustrated orientation requires subtraction from the CD bearing. Thus 286°00′00″−47.069″=285°59′12.9″, option B. Sexagesimal borrowing is essential.
