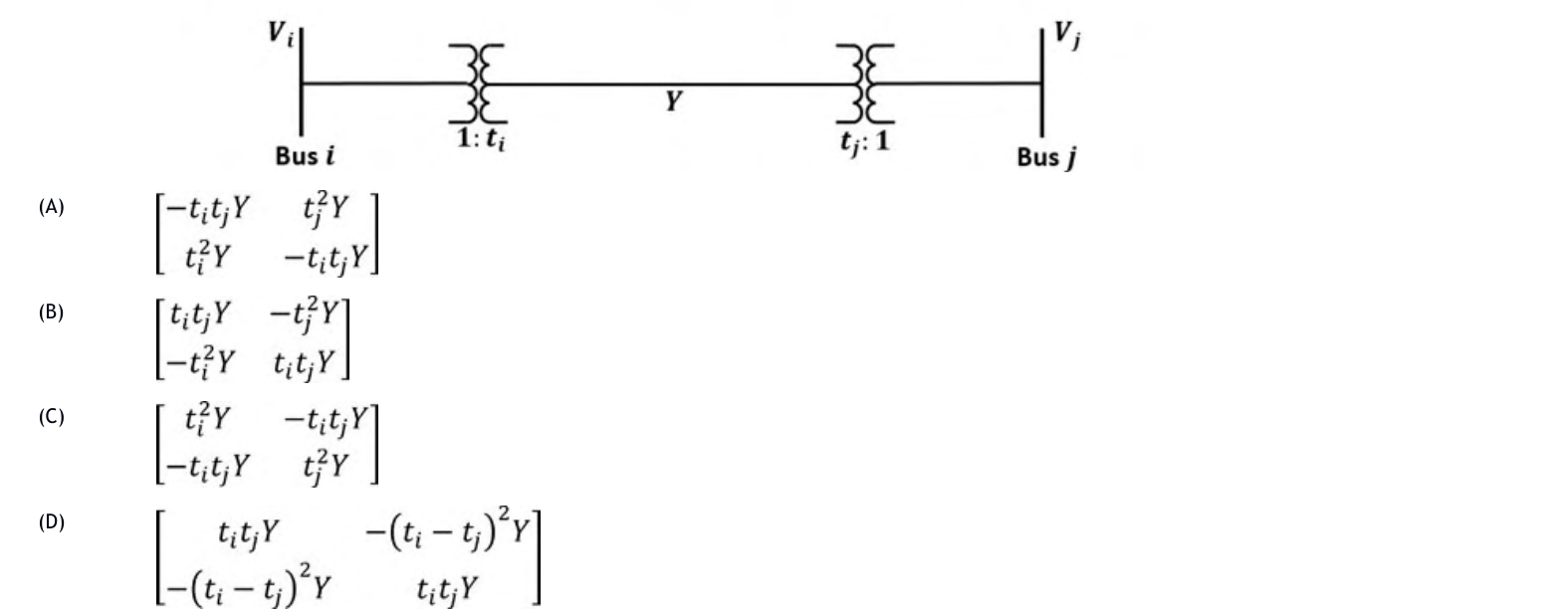

Two buses, $i$ and $j$, are connected with a transmission line of admittance $Y$, at the two ends of which there are ideal transformers with turns ratios as shown. Bus admittance matrix for the system is:
Referring the line to each bus gives the diagonal entries $t_i^2Y$ and $t_j^2Y$ (each end sees the line admittance scaled by the square of its tap ratio), and the off-diagonal entries are $-t_it_jY$. That is matrix (C).
