GATE 2018 EC – Question 18

Digital Circuits · Combinatorial Circuits · 1 mark · Multiple choice

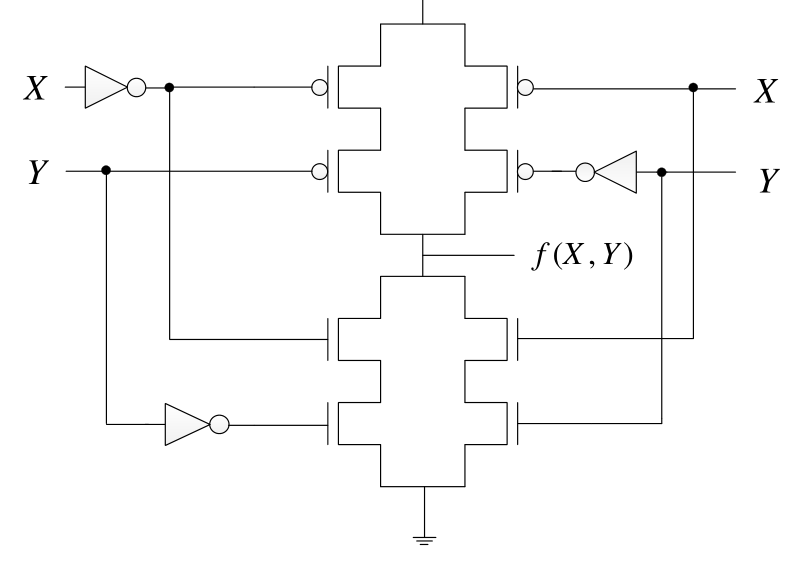

The logic function $f(X,Y)$ realized by the given circuit is

Diagram for GATE 2018 EC question 18
  1. NOR
  2. AND
  3. NAND
  4. XOR

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: (D) XOR

Explanation

The two inverted inputs steer the pass-transistor stacks so that the output is $X\bar Y+\bar XY$ (the output connects to $\bar Y$ when $X=1$ and to $Y$ when $X=0$), which is the XOR function.
