Home › Previous year questions › GATE 2016 EC › Question 27GATE 2016 EC – Question 27 Digital Circuits · Combinatorial Circuits · 1 mark · Multiple choice

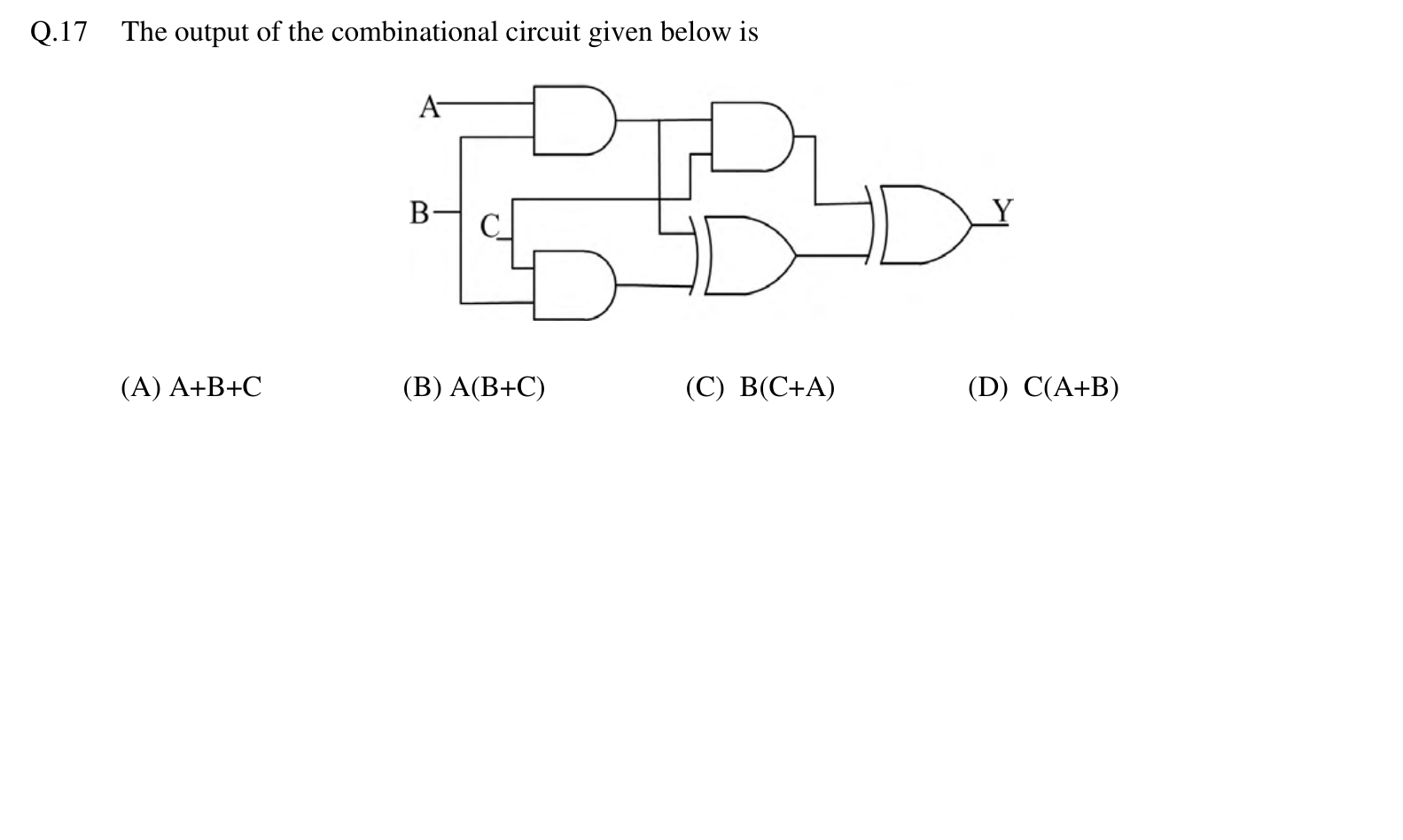

The output of the combinational circuit given below is
$A + B + C$ $A(B + C)$ $B(C + A)$ $C(A + B)$ Practise this question in The GATE Grind →
Show answer and explanation Correct answer: (C) $B(C + A)$
Explanation G1 $= AB$, G2 $= BC$ and G3 $= ABC$. The first exclusive-OR gives $AB \oplus BC = B(A \oplus C)$. The output is $Y = ABC \oplus B(A \oplus C) = B[AC \oplus (A \oplus C)]$. Since $A \oplus C \oplus AC = A + C$, the output is $Y = B(A + C)$.
