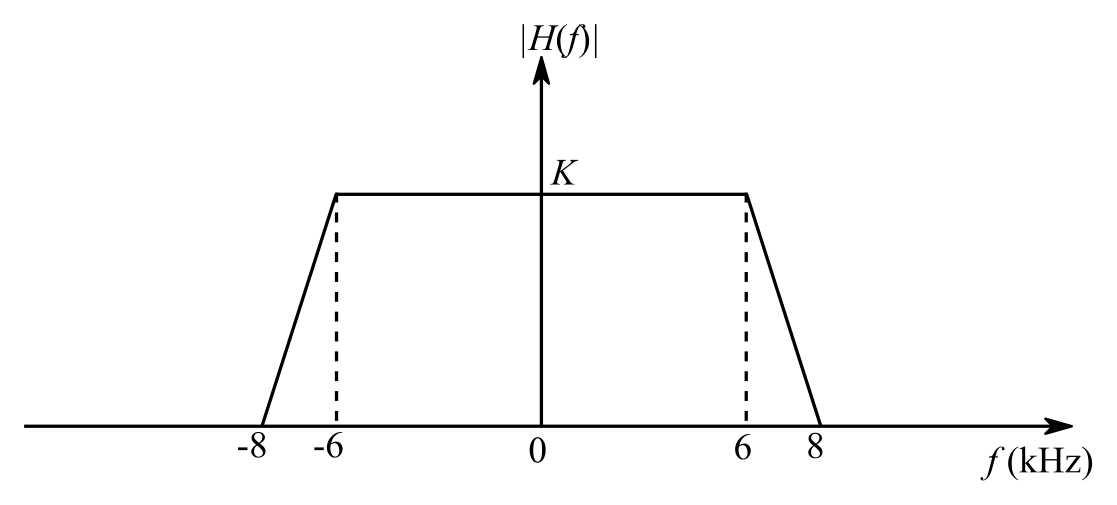

A band limited low-pass signal $x(t)$ of bandwidth 5 kHz is sampled at a sampling rate $f_s$. The signal $x(t)$ is reconstructed using the reconstruction filter $H(f)$ whose magnitude response is shown below.
The minimum sampling rate $f_s$ (in kHz) for perfect reconstruction of $x(t)$ is ________.
Sampling at $f_s$ creates copies of the spectrum centred at multiples of $f_s$. The signal occupies up to 5 kHz, so the first copy starts at $f_s-5$ kHz.
The reconstruction filter is flat to 6 kHz and reaches zero at 8 kHz. To keep the first copy out, it must start at or beyond the filter's cut-off: $f_s-5\ge8$, so $f_s\ge13$ kHz.
