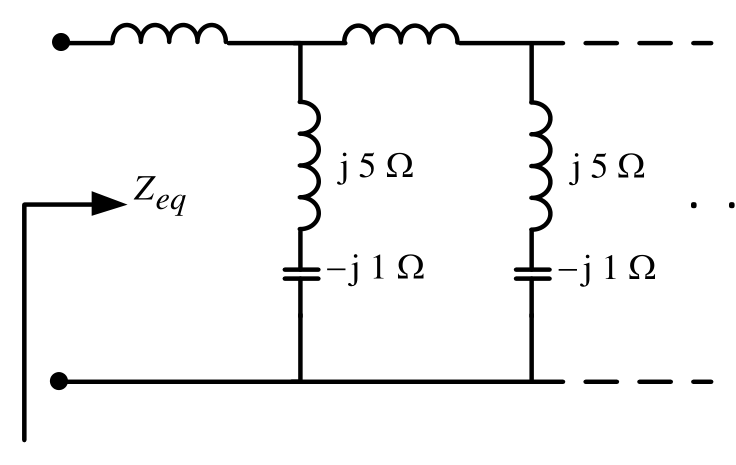

Each shunt branch is $j5-j1=j4\ \Omega$. Let $Z_{eq}=jx$. Then $jx=j9+\frac{j4\cdot jx}{j4+jx}$ with the series $j9$ and the parallel combination, which gives $(x-9)(x+4)=4x$, i.e. $x^2-9x-36=0$ and $x=12$. So $Z_{eq}=j12\ \Omega$.
More Network Elements: Ideal voltage and current sources, dependent sources, R, L, C, M elements questions
GATE 2014 EE (EE1) Q16– The three elements shown form part of a circuit. Find total power absorbed (W).
GATE 2014 EE (EE1) Q39– A lamp is rated 40 W, 240 V. Its resistance at 26°C is 120 Ω and temperature coefficient…
GATE 2017 EE (EE2) Q32– The 1 F capacitor in the circuit is initially uncharged. The energy transferred from the…
GATE 2016 EE (EE2) Q47– The capacitor initially has 4 V. S1 closes at t=0. The charge lost between t=25 μs and…
GATE 2015 EE (EE2) Q28– The series RL circuit has zero initial conditions and a DC source V switched on at t=0.…
GATE 2026 EE Q23– A circuit with ideal elements is shown. Which one of the following options correctly…
