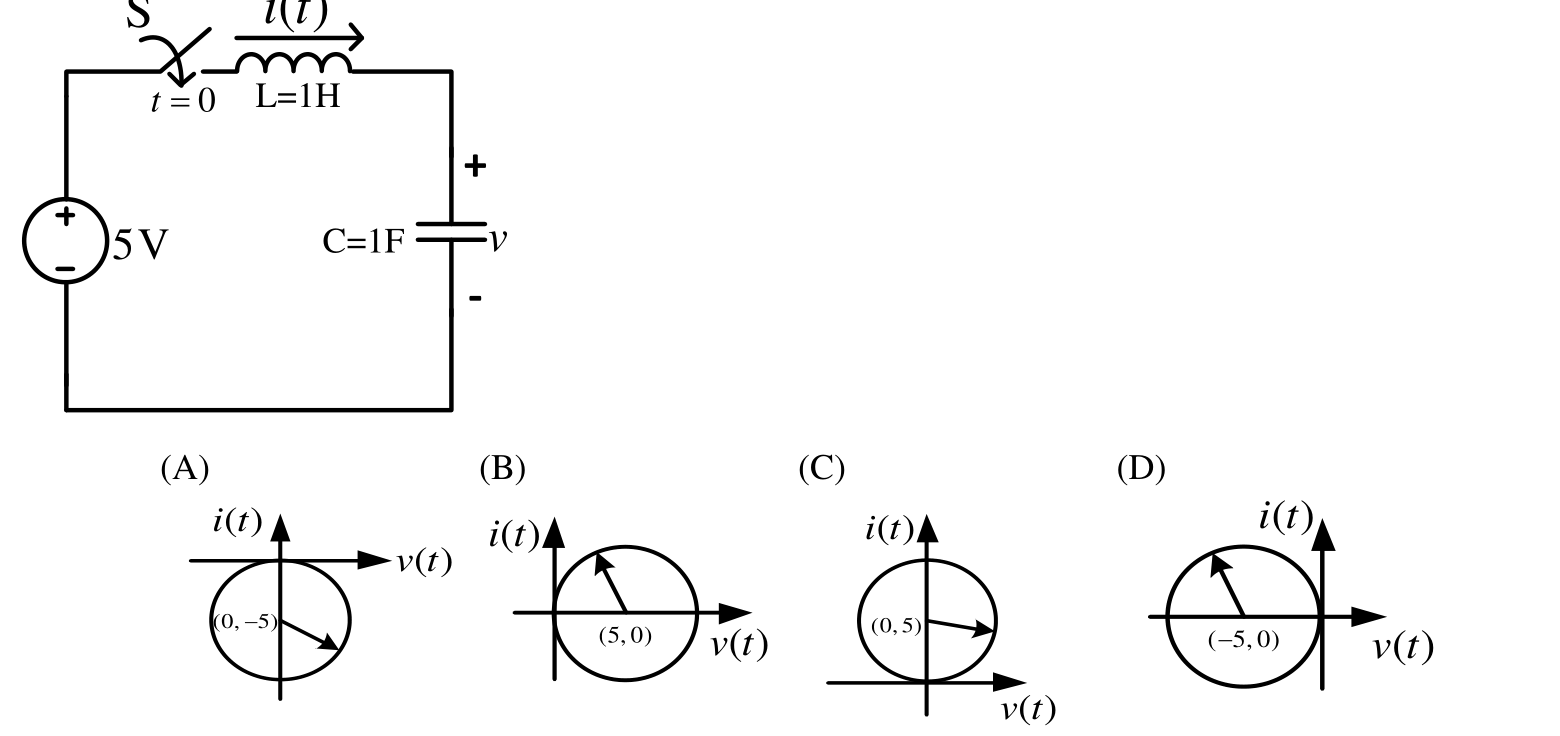

A DC voltage source is connected to a series L-C circuit by turning on the switch S at time $t=0$ as shown in the figure. Assume $i(0)=0$, $v(0)=0$. Which one of the following circular loci represents the plot of $i(t)$ versus $v(t)$?
With $L=C=1$, $i(t)=5\sin t$ and $v(t)=5(1-\cos t)$. So $(v-5)^2+i^2=25$, a circle with centre $(5,0)$ and radius 5 that starts from the origin and is traversed with $i>0$ initially. That is locus (B).
