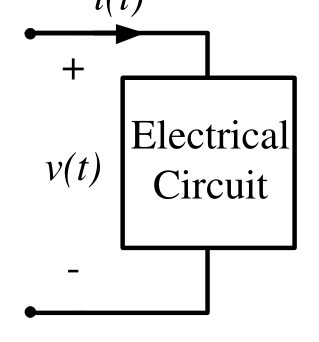

The voltage across the circuit in the figure, and the current through it, are given by the following expressions:
$v(t)=5-10\cos(\omega t+60^\circ)$ V
$i(t)=5+X\cos(\omega t)$ A
where $\omega=100\pi$ radian/s. If the average power delivered to the circuit is zero, then the value of $X$ (in Ampere) is ________ (up to 2 decimal places).
Average power is the sum of the powers of the dc part and of each frequency component (components of different frequencies do not combine).
DC: $5\times5=25$ W.
At $\omega$: $\dfrac12(-10)(X)\cos60^\circ=-2.5X$ W (the voltage phase is $60^\circ$ and the current phase is $0^\circ$).
$P=25-2.5X=0$ gives $X=10$ A.
