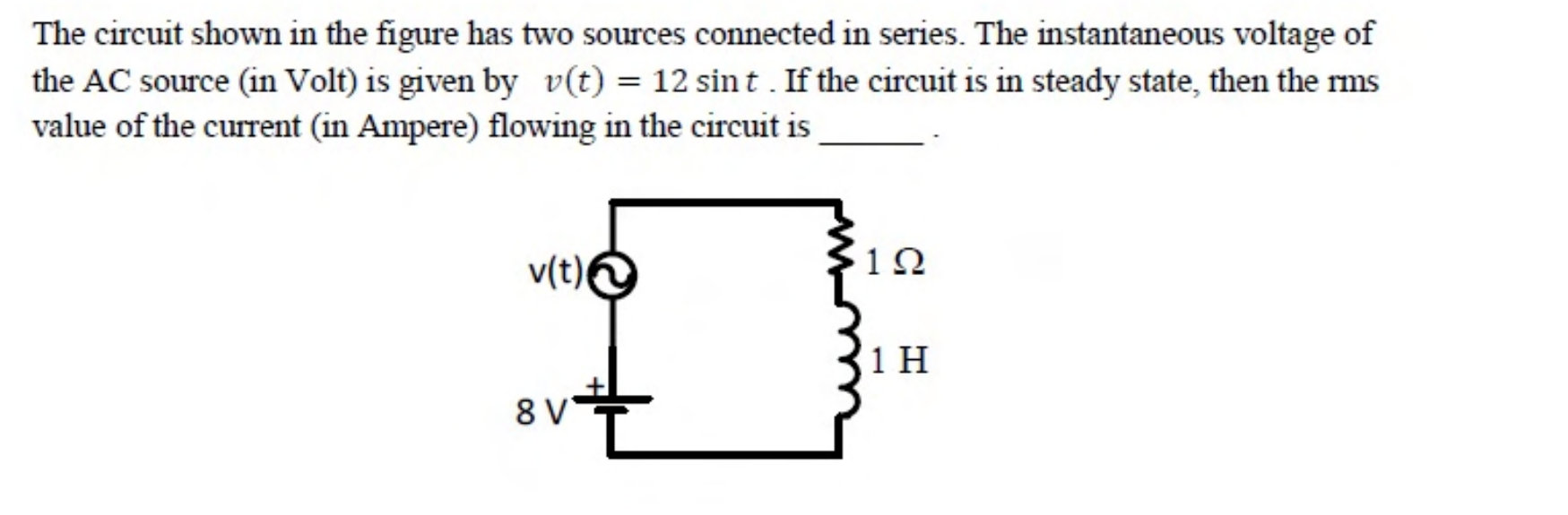

The circuit shown in the figure has two sources connected in series. The instantaneous voltage of the AC source (in Volt) is given by $v(t) = 12\sin t$. If the circuit is in steady state, then the rms value of the current (in Ampere) flowing in the circuit is ________.
The DC part drives $\frac{8}{1} = 8$ A, since the inductor is a short for DC. The AC part has an impedance of $1 + j1$ with magnitude $\sqrt{2}$, so its peak current is $\frac{12}{\sqrt{2}} = 8.485$ A and its rms value is $\frac{8.485}{\sqrt{2}} = 6$ A. The total rms current is $\sqrt{8^2 + 6^2} = 10$ A.
