GATE 2015 EC – Question 16

Networks, Signals and Systems · Sinusoidal Steady State Analysis · 1 mark · Numerical answer

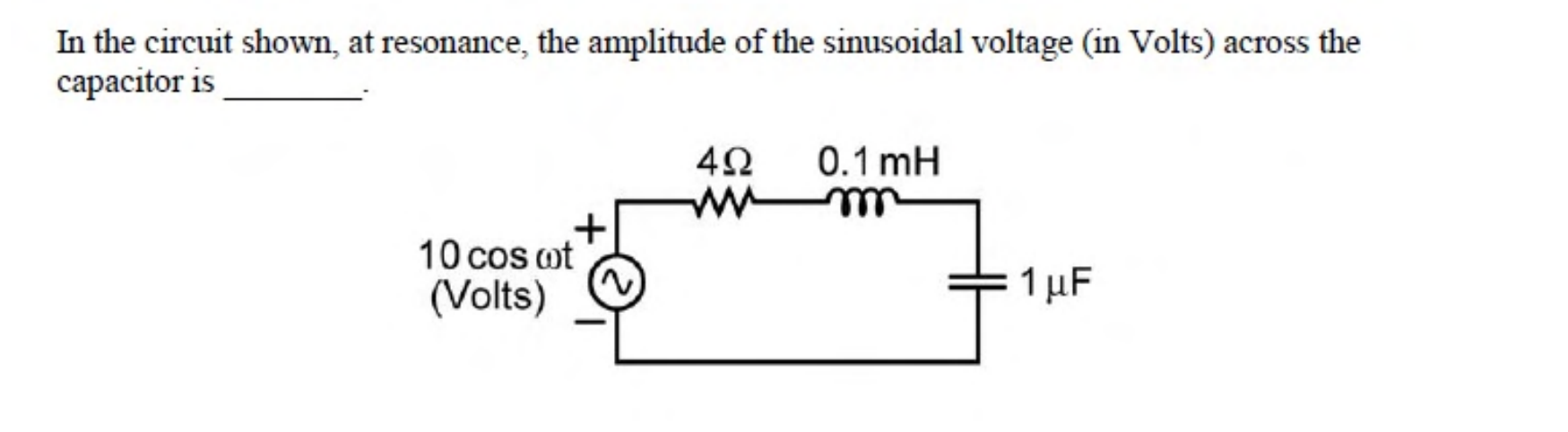

In the circuit shown, at resonance, the amplitude of the sinusoidal voltage (in Volts) across the capacitor is ________.

Diagram for GATE 2015 EC question 16

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: 24 to 26

Explanation

At resonance $\omega = \frac{1}{\sqrt{LC}} = \frac{1}{\sqrt{10^{-4} \times 10^{-6}}} = 10^5$ rad/s. The current is limited only by the resistance, so $I = \frac{10}{4} = 2.5$ A. The capacitor reactance is $\frac{1}{\omega C} = 10\ \Omega$, so the capacitor voltage is $2.5 \times 10 = 25$ V.
