GATE 2015 EC – Question 17

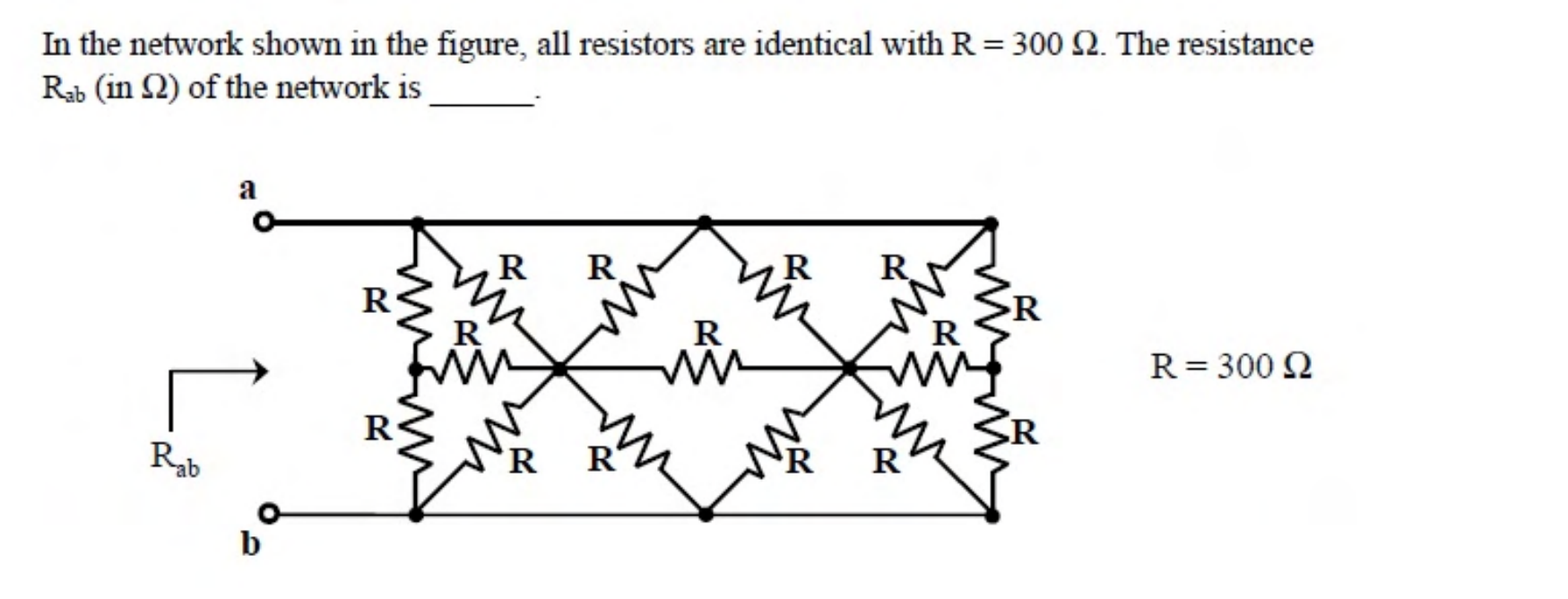

In the network shown in the figure, all resistors are identical with $R = 300\ \Omega$. The resistance $R_{ab}$ (in $\Omega$) of the network is ________.
Practise this question in The GATE Grind →
Show answer and explanation
Correct answer: 99.5 to 100.5
Explanation
The network is symmetric above and below the middle rail, so the middle nodes are at the same potential and can be joined. The upper half then reduces to $\frac{R}{6}$ in parallel groups, and so does the lower half. The total is $\frac{R}{6} + \frac{R}{6} = \frac{R}{3} = 100\ \Omega$.
