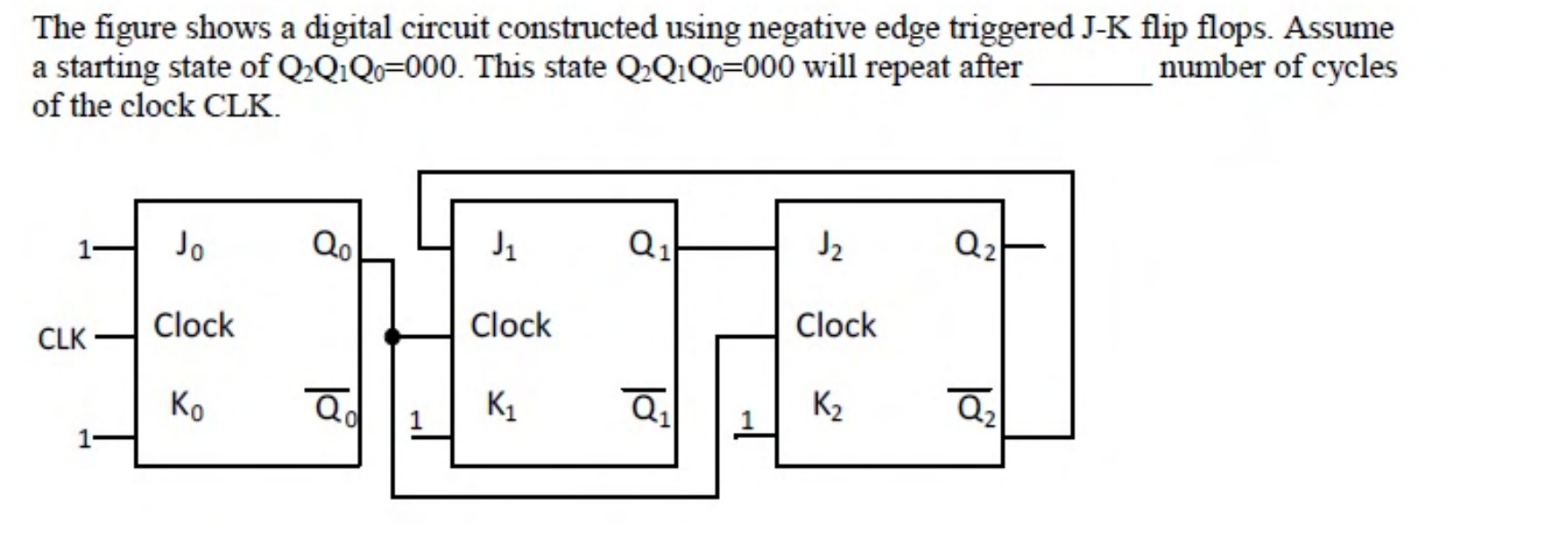

The figure shows a digital circuit constructed using negative edge triggered J-K flip flops. Assume a starting state of $Q_2 Q_1 Q_0 = 000$. This state $Q_2 Q_1 Q_0 = 000$ will repeat after ________ number of cycles of the clock CLK.
Stepping the three flip-flops through the clock edges from the state 000 and using the connections in the figure, the counter passes through six different states before returning to 000. So the state repeats after 6 clock cycles, which matches the official key.
