GATE 2025 ME – Question 26

Engineering Mechanics · Kinematics and dynamics of rigid bodies in plane motion · 1 mark · Multiple choice

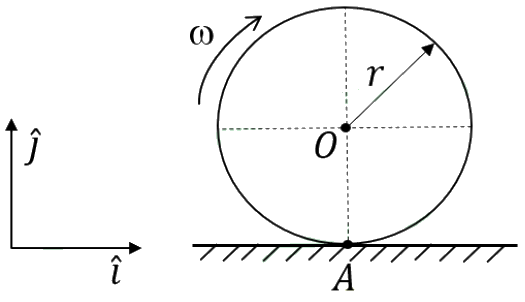

A rigid circular disc of radius $r$ (in m) is rolling without slipping on a flat surface as shown in the figure below. The angular velocity of the disc is $\omega$ (in rad s$^{-1}$). The velocities (in m s$^{-1}$) at points $O$ and $A$, respectively, are

Diagram for GATE 2025 ME question 26
  1. $r\omega\,\hat{i}$ and $0\,\hat{i}$
  2. $-r\omega\,\hat{i}$ and $0\,\hat{i}$
  3. $-r\omega\,\hat{i}$ and $-r\omega\,\hat{i}$
  4. $r\omega\,\hat{i}$ and $r\omega\,\hat{i}$

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: (A) $r\omega\,\hat{i}$ and $0\,\hat{i}$

Explanation

Rolling without slipping means the contact point A is momentarily at rest, so $v_A=0$. The figure's arrow shows the disc turning **clockwise**: the top of the disc moves to the right.

Take A as the instantaneous centre of rotation. The centre O is a distance $r$ from A, so its speed is $v_O=r\omega$. Because the disc turns clockwise about A, O moves to the right:

$v_O=r\omega\,\hat i$ and $v_A=0\,\hat i$, which is option (A).
