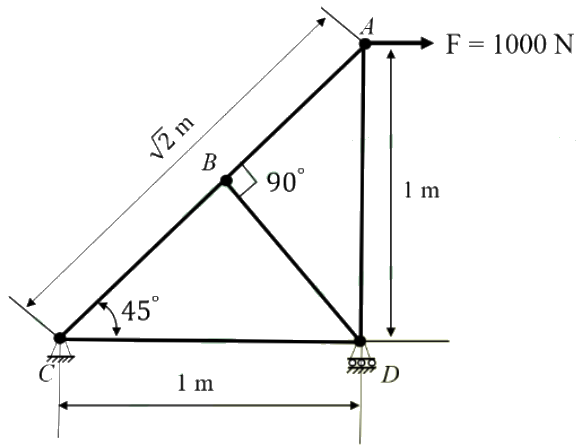

At joint B only three members meet, BC, BA and BD, and there is no external load on B. Members BC and BA lie along the same straight line, so they carry equal force. The third member, BD, is at an angle to them, so the force balance at B perpendicular to the line CA forces the force in BD to be zero.
