GATE 2019 ME (ME1) – Question 26

Engineering Mechanics · Kinematics and dynamics of rigid bodies in plane motion · 1 mark · Multiple choice

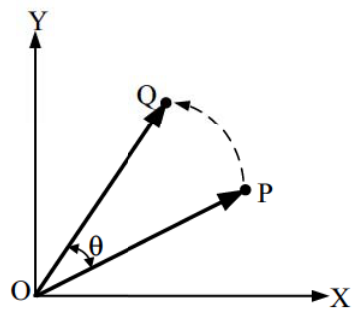

Position vector OP for P(20,10) rotates counterclockwise 30° in the XY plane to position Q shown. Find Q’s coordinates (x,y).

Diagram for GATE 2019 ME (ME1) question 26
  1. (13.40, 22.32)
  2. (22.32, 8.26)
  3. (12.32, 18.66)
  4. (18.66, 12.32)

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: (C) (12.32, 18.66)

Explanation

The planar rotation gives $x=20\cos30^\circ-10\sin30^\circ=12.3205$ and $y=20\sin30^\circ+10\cos30^\circ=18.6603$. Thus **(12.32,18.66), C**. The signs follow counterclockwise rotation in a fixed coordinate frame.
