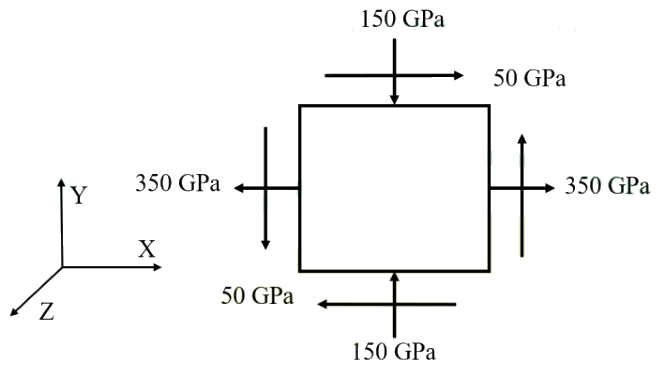

The state of stress at a point is shown in the figure given below. Under plane stress assumption, the normal strain along the thickness direction ($\varepsilon_{zz}$) is ____________ (rounded off to 2 decimal places).
Use the Young's Modulus E = 200 GPa and Poisson's ratio $\nu$ = 0.27.
Under plane stress, $\sigma_z = 0$ and the strain through the thickness is $\varepsilon_{zz} = -\frac{\nu}{E}(\sigma_x + \sigma_y)$. The shear stress does not affect it. With $\sigma_x = 350$ and $\sigma_y = 150$ (using the units as printed) and $E = 200$, we get $\varepsilon_{zz} = -\frac{0.27}{200}(350 + 150) = -0.675$, which rounds to $-0.68$.
