GATE 2021 ME (ME1) – Question 16

Mechanics of Materials · Stress, strain and elastic constants · 1 mark · Multiple choice

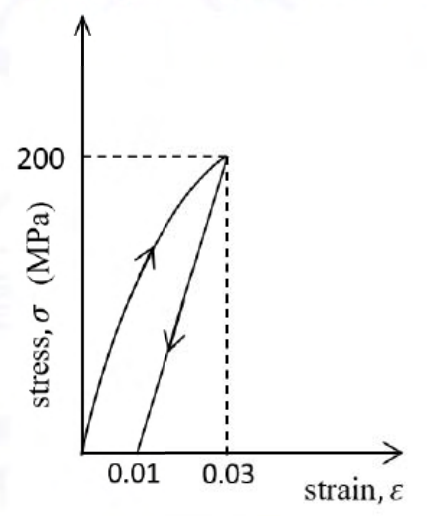

The loading and unloading response of a metal is shown in the figure. The elastic and plastic strains corresponding to 200 MPa stress, respectively, are

Stress–strain loading and unloading graph: total strain 0.03 at 200 MPa, with zero-stress unloading intercept 0.01. See the attached source image.
  1. 0.01 and 0.01
  2. 0.02 and 0.01
  3. 0.01 and 0.02
  4. 0.02 and 0.02

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: (B) 0.02 and 0.01

Explanation

Total strain at 200 MPa is 0.03. Unloading returns to zero stress at strain 0.01, which is the unrecovered plastic strain.

Recovered elastic strain is 0.03−0.01=0.02. Hence **elastic 0.02, plastic 0.01 (B)**.
