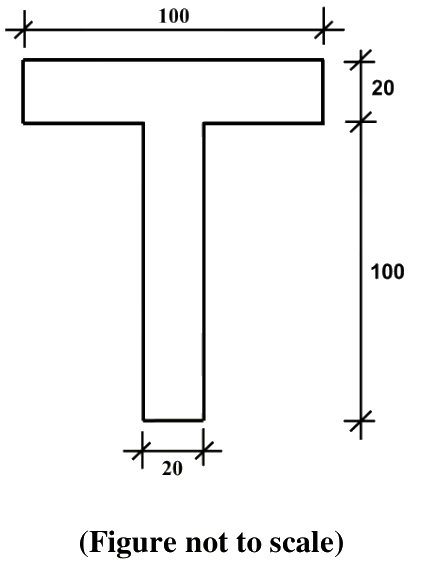

The flange area is $100 \times 20 = 2000$ mm$^2$ and the web area is $20 \times 100 = 2000$ mm$^2$, so each half of the 4000 mm$^2$ section has 2000 mm$^2$. The plastic neutral axis is at the junction of the flange and the web. The centroid of the flange is 10 mm above it and the centroid of the web is 50 mm below it. So $Z_p = 2000 \times 10 + 2000 \times 50 = 120{,}000$ mm$^3$, which is $12 \times 10^4$ mm$^3$.
