GATE 2026 CE (CE1) – Question 51

Solid Mechanics · Simple stress and strain relationships · 2 marks · Numerical answer

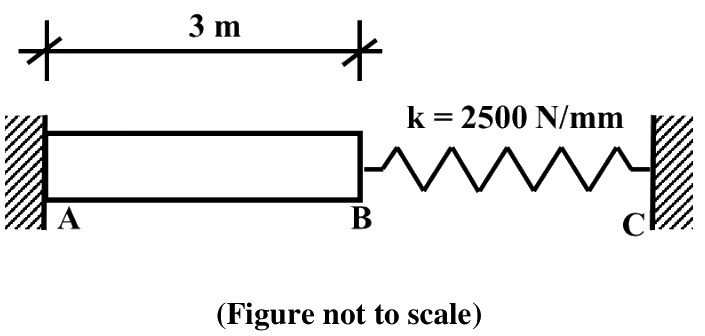

A homogenous, linearly elastic rod AB is connected to a linearly elastic spring BC in between the fixed supports at A and C, as shown in the figure. The cross-sectional area, modulus of elasticity, and the coefficient of thermal expansion of the rod AB are 500 mm$^2$, $60 \times 10^3$ MPa, and $12 \times 10^{-6}$ per °C, respectively. The stiffness ($k$) of spring BC is 2500 N/mm.

The internal force (in kN) that will develop in the spring BC when the temperature of rod AB is increased by 100 °C is _________ (*rounded off to one decimal place*).

Diagram for GATE 2026 CE (CE1) question 51

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: 7.16 to 7.24

Explanation

**1. Calculate free thermal expansion.** Use L = 3000 mm and $\Delta T=100$°C. The unconstrained expansion is $\delta_T=\alpha\Delta TL=12\times10^{-6}(100)(3000)=3.6$ mm.

**2. Calculate the resisting compliances.** Rod stiffness is $AE/L=500(60000)/3000=10000$ N/mm. Its elastic compression under force F is F/10000 mm; spring compression is F/2500 mm.

**3. Impose compatibility between fixed supports.** Free expansion must equal rod compression plus spring compression: $3.6=F/10000+F/2500=0.0005F$.

**4. Solve for the common force.** $F=3.6/0.0005=7200$ N = **7.2 kN**. Rod and spring carry the same force; adding their stiffnesses would incorrectly treat them as parallel elements.
