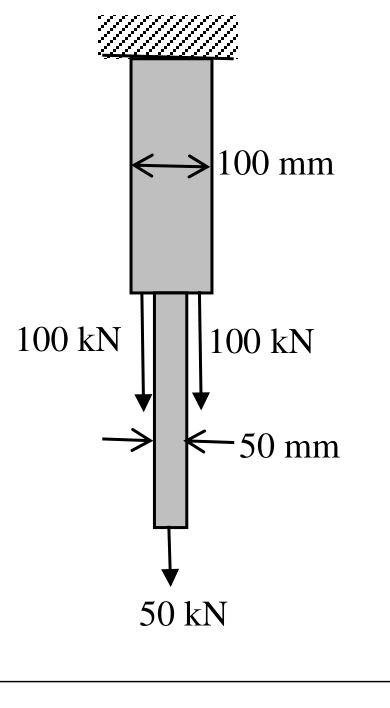

A hanger is made of two bars of different sizes. Each bar has a square cross-section. The hanger is loaded by three-point loads in the mid vertical plane as shown in the figure. Ignore the self-weight of the hanger. What is the maximum tensile stress in N/mm$^2$ anywhere in the hanger without considering stress concentration effects?
The lower bar carries only the 50 kN load: $\frac{50000}{50 \times 50} = 20$ N/mm². The upper bar carries all the loads, $100 + 100 + 50 = 250$ kN: $\frac{250000}{100 \times 100} = 25$ N/mm². The maximum is 25.0 N/mm².
