GATE 2020 CE (CE1) – Question 51

Solid Mechanics · Simple stress and strain relationships · 2 marks · Numerical answer

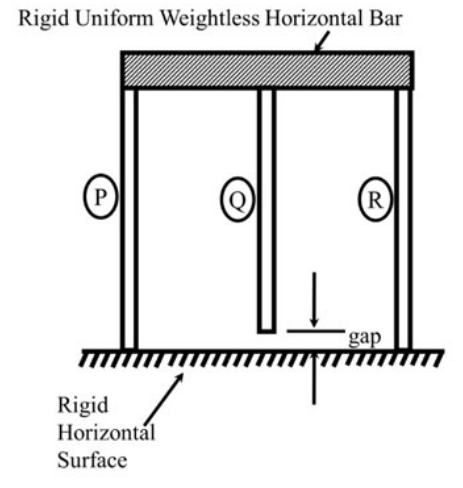

A rigid uniform weightless horizontal bar connects three vertical members P, Q and R, each of axial stiffness 10 kN/mm. P and R rest on a rigid horizontal surface; Q initially has a 2 mm bottom gap. Load W moves the bar down 5 mm while it stays horizontal. Find W (kN), nearest integer.

Diagram for GATE 2020 CE (CE1) question 51

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: 129 to 131

Explanation

Each outer member shortens 5 mm and carries $10(5)=50$ kN. The middle member engages after 2 mm and shortens 3 mm, carrying 30 kN. Total load is $50+30+50=\mathbf{130}$ kN.
