GATE 2021 CE (CE1) – Question 52

Solid Mechanics · Simple stress and strain relationships · 2 marks · Numerical answer

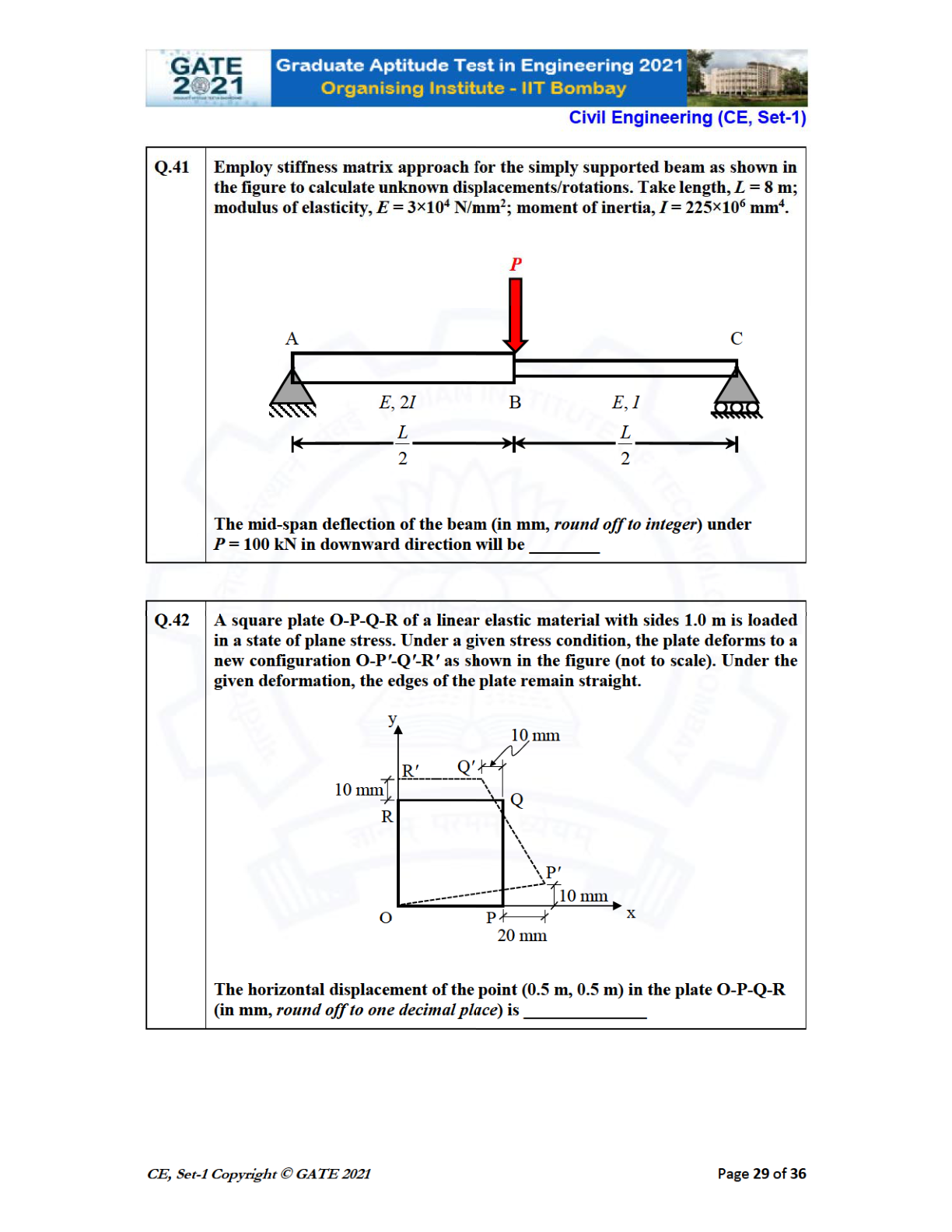

A square plate of side 1 m deforms with straight edges. Horizontal corner displacements are O:0, P:20 mm, Q:−10 mm, R:0; the figure also gives vertical corner movements. Find horizontal displacement at the centre in mm to one decimal.

see the reproduced source diagram and its labels.

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: 2.4 to 2.6

Explanation

The horizontal displacement field interpolates the straight-edged deformation. At the centre of the square, the four bilinear corner shape functions each equal 1/4. Thus $u=(0+20-10+0)/4=\mathbf{2.5}$ mm. The vertical corner movements do not enter this horizontal component.
