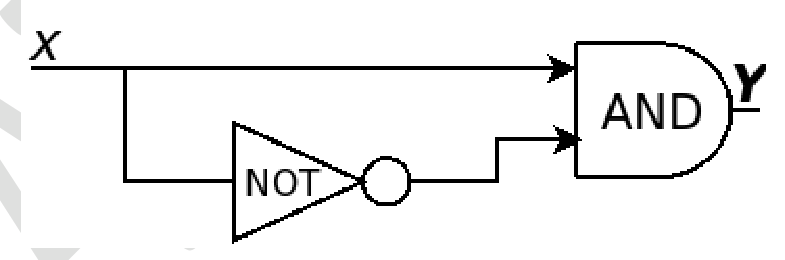

Consider the circuit shown below where the gates may have propagation delays. Assume that all signal transitions occur instantaneously and that wires have no delays. The circuit feeds X directly to one AND input and NOT(X) to the other AND input, output Y. Which of the following statements about the circuit is/are CORRECT?
With no propagation delays, the output $Y$ is always logic Zero
With no propagation delays, the output $Y$ is always logic One
With propagation delays, the output $Y$ can have a transient logic One after $X$ transitions from logic Zero to logic One
With propagation delays, the output $Y$ can have a transient logic Zero after $X$ transitions from logic One to logic Zero
Correct answer: (A) With no propagation delays, the output $Y$ is always logic Zero; (C) With propagation delays, the output $Y$ can have a transient logic One after $X$ transitions from logic Zero to logic One
Explanation
Y = X·X' = 0 with no delays. When X rises 0→1, the direct input rises before the delayed NOT output falls, giving a brief 1 (static-0 hazard). A 1→0 transition cannot produce a transient 1 or a transient 0 since Y is already 0.
