GATE 2023 ME – Question 45

Computer Aided Manufacturing and Automation · NC/CNC machines and CNC programming · 2 marks · Multiple choice

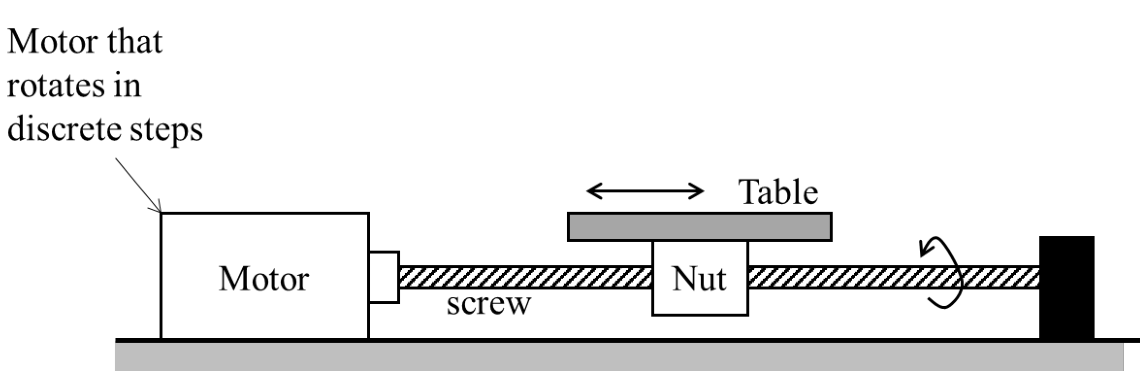

A CNC machine has one of its linear positioning axes as shown in the figure, consisting of a motor rotating a lead screw, which in turn moves a nut horizontally on which a table is mounted. The motor moves in discrete rotational steps of 50 steps per revolution. The pitch of the screw is 5 mm and the total horizontal traverse length of the table is 100 mm. What is the total number of controllable locations at which the table can be positioned on this axis?

Diagram for GATE 2023 ME question 45
  1. 5000
  2. 2
  3. 1000
  4. 200

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: (C) 1000

Explanation

One revolution moves the table by the pitch of 5 mm and takes 50 steps, so each step moves it by $\frac{5}{50} = 0.1$ mm (the resolution). Over the 100 mm of traverse the table can be placed at steps of 0.1 mm, that is $\frac{100}{0.1} = 1000$ positions.
