GATE 2025 BT – Question 8

General Aptitude · Analytical Aptitude: Logical Reasoning and Deduction · 2 marks · Multiple choice

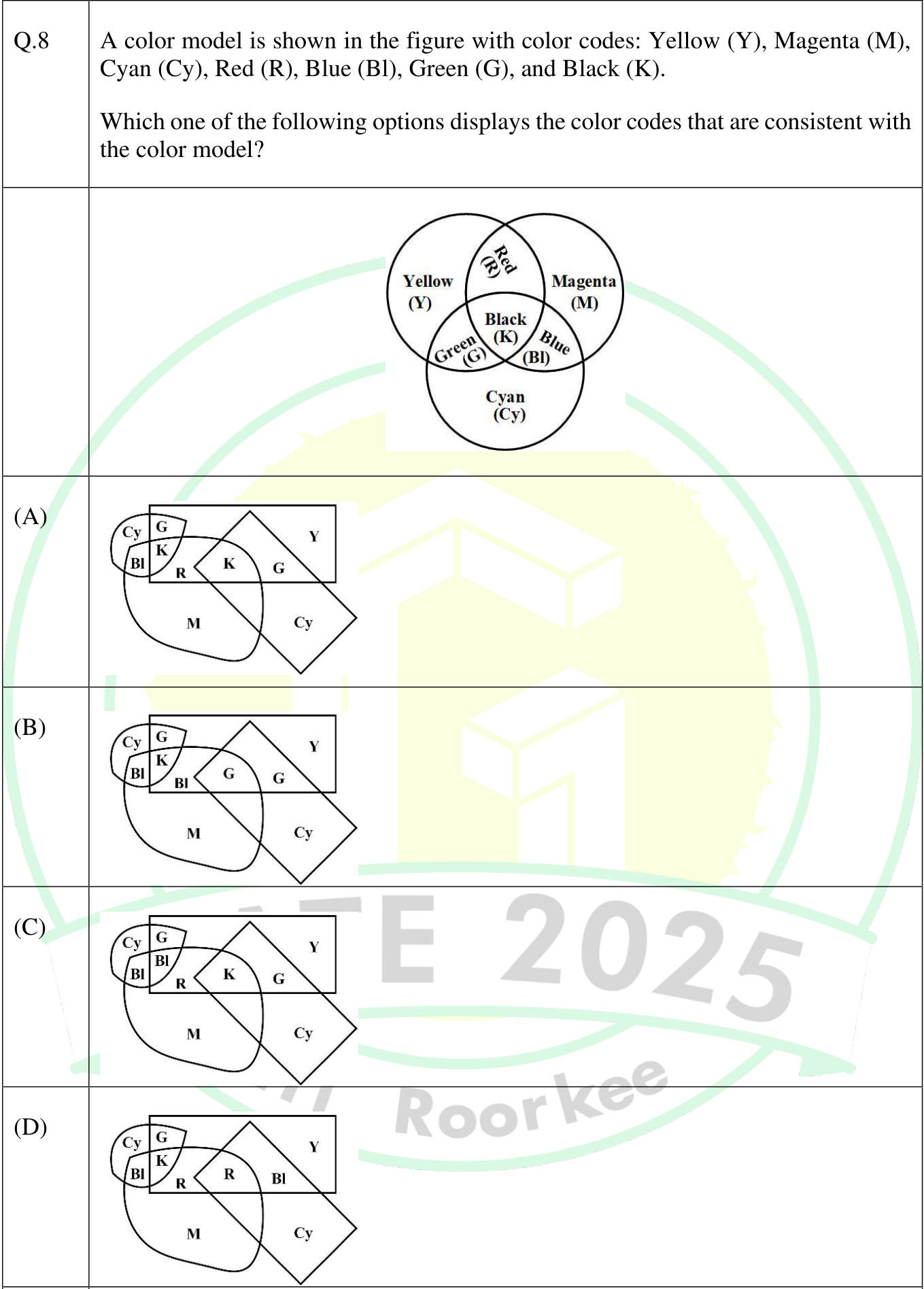

A color model is shown in the figure with color codes: Yellow (Y), Magenta (M), Cyan (Cy), Red (R), Blue (Bl), Green (G), and Black (K).

Which one of the following options displays the color codes that are consistent with the color model?

A Venn diagram of three overlapping circles Yellow, Magenta and Cyan. Yellow with Magenta is Red, Yellow with Cyan is Green, Magenta with Cyan is Blue, and all three together are Black. Four options A to D redraw the sets as a rectangle, a loop and a diamond with a small extra loop, and label the regions.
  1. Option A in the figure
  2. Option B in the figure
  3. Option C in the figure
  4. Option D in the figure

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: (A) Option A in the figure

Explanation

Each region must carry the colour of the sets that overlap there: Yellow with Magenta only is Red, Yellow with Cyan only is Green, Magenta with Cyan only is Blue and all three is Black. In option A the region of Yellow and Magenta only is R, the Yellow and Cyan only regions are G, and the regions where all three overlap are K. In B the Yellow and Magenta only region is labelled Bl, in C a region where all three overlap is labelled Bl, and in D several overlaps are labelled with the wrong colours.
