GATE 2023 PH – Question 37

Electronics · oscillators, operational amplifiers and their applications, active filters · 2 marks · Multiple choice

An input voltage in the form of a square wave of frequency 1 kHz is given to a circuit, which results in the output shown schematically below. Which one of the following options is the CORRECT representation of the circuit?

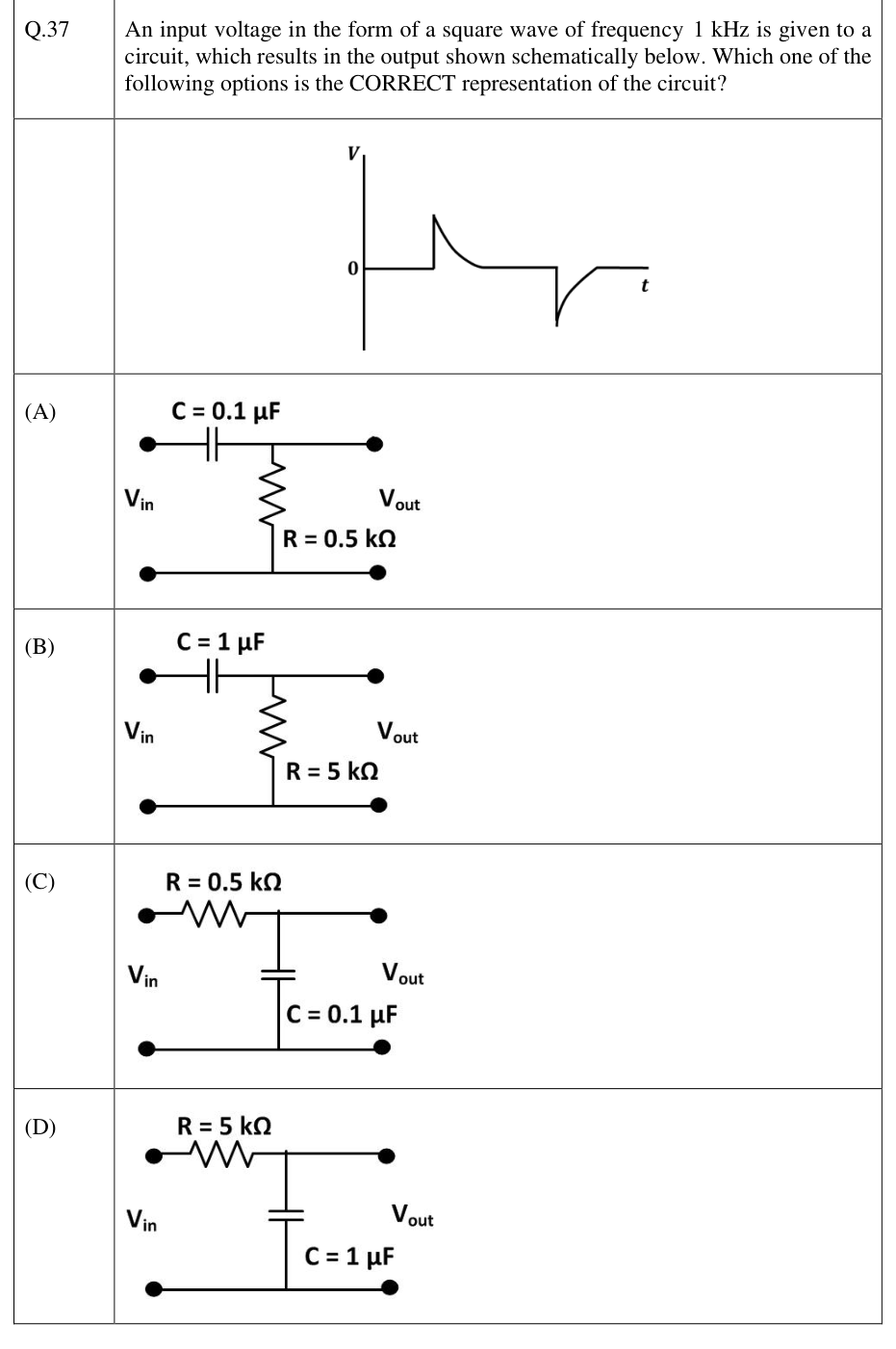

Square-wave response and candidate RC circuits.
  1. Option A in the figure
  2. Option B in the figure
  3. Option C in the figure
  4. Option D in the figure

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: (A) Option A in the figure

Explanation

Differentiated square-wave edges require a high-pass circuit with RC much less than 1 ms. A has RC = 0.05 ms; B has 5 ms and the other choices are low-pass.
