GATE 2020 ME (ME2) – Question 22

Metrology and Inspection · Interferometry, form and finish measurement · 1 mark · Multiple choice

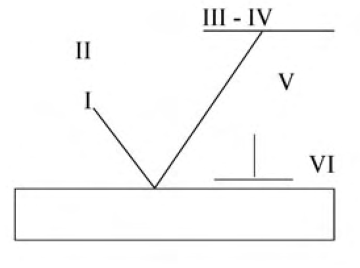

The figure symbolically represents surface texture in a perpendicular lay orientation. I–VI mark specification positions. P: Maximum waviness height (mm); Q: Maximum roughness height (mm); R: Minimum roughness height (mm); S: Maximum waviness width (mm); T: Maximum roughness width (mm); U: Roughness width cutoff (mm). Match the specifications to I–VI.

Diagram for GATE 2020 ME (ME2) question 22
  1. I–R, II–Q, III–P, IV–S, V–U, VI–T
  2. I–R, II–P, III–U, IV–S, V–T, VI–Q
  3. I–U, II–S, III–Q, IV–T, V–R, VI–P
  4. I–Q, II–U, III–R, IV–T, V–S, VI–P

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: (A) I–R, II–Q, III–P, IV–S, V–U, VI–T

Explanation

The stacked left-side entries set minimum and maximum roughness height (I=R,II=Q). The upper paired values specify maximum waviness height and width (III=P,IV=S). The central value V is roughness cutoff U, and the lower right VI is maximum roughness width T. **Answer:A**. Match positions rather than alphabetic order.
