GATE 2020 CE (CE2) – Question 16

Solid Mechanics · Transformation of stress, Mohr circle · 1 mark · Multiple choice

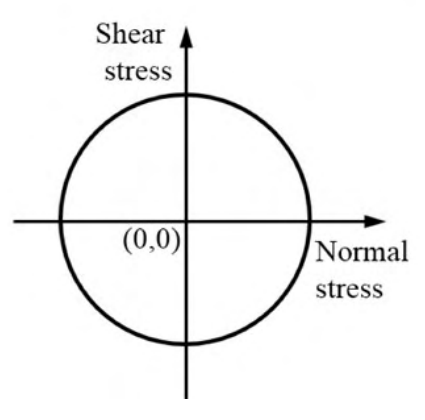

Which stress state is represented by the shown Mohr circle?

Diagram for GATE 2020 CE (CE2) question 16
  1. Uniaxial tension
  2. Biaxial tension of equal magnitude
  3. Hydrostatic stress
  4. Pure shear

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: (D) Pure shear

Explanation

The zero centre means the two in-plane principal stresses sum to zero. Nonzero radius gives equal and opposite principal stresses,which can be represented as pure shear on axes45° from the principal directions. **Answer:D**. Equal biaxial stress would give a point rather than this circle.
