GATE 2019 CE (CE2) – Question 39

Solid Mechanics · Transformation of stress, Mohr circle · 2 marks · Multiple choice

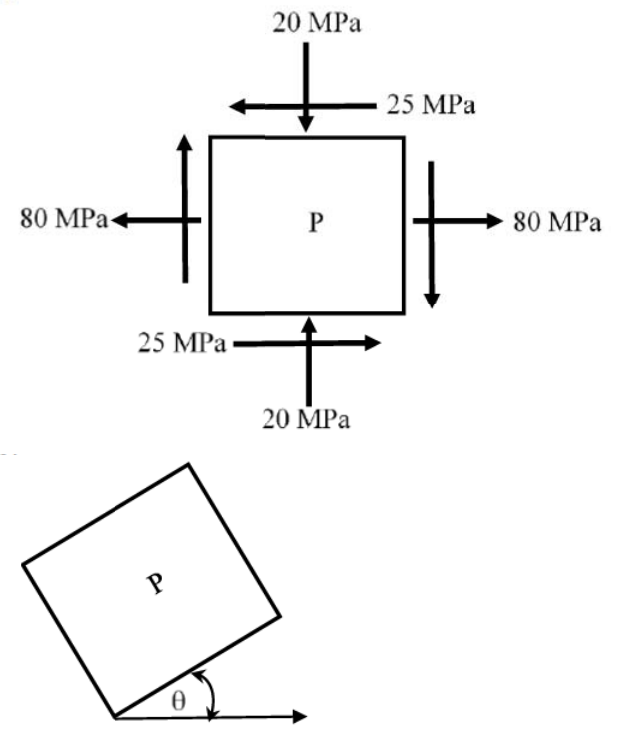

The plane-stress element shown has horizontal tensile stress 80 MPa, vertical compressive stress 20 MPa and clockwise shear 25 MPa. Through what indicated positive angle θ (degrees) should it rotate to obtain planes of maximum shear stress?

Diagram for GATE 2019 CE (CE2) question 39
  1. 13.3
  2. 26.6
  3. 31.7
  4. 48.3

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: (C) 31.7

Explanation

Take $\sigma_x=80$, $\sigma_y=-20$, $\tau_{xy}=-25$ MPa. Principal rotation satisfies $\tan2\theta_p=2\tau_{xy}/(\sigma_x-\sigma_y)=-0.5$, so $\theta_p=-13.2825^\circ$. Maximum-shear planes are 45° from principal planes. The indicated positive rotation is $45-13.2825=$ **31.7°, C**.
