GATE 2019 ME (ME1) – Question 44

Casting, Forming and Joining Processes · Plastic deformation and yield criteria, hot and cold working · 2 marks · Multiple choice

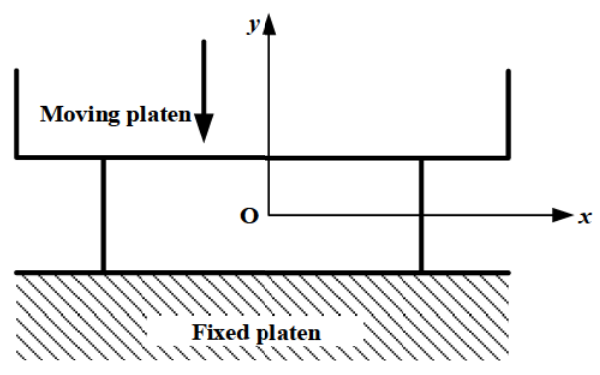

The plane-strain forging block shown has zero z strain and uniaxial-compression yield strength 300 MPa, obeying Tresca’s criterion. The entire block is yielding. At a point with $\sigma_x=-40$ MPa (compression) and $\tau_{xy}=0$, find $\sigma_y$.

Diagram for GATE 2019 ME (ME1) question 44
  1. 340 MPa compressive
  2. 340 MPa tensile
  3. 260 MPa compressive
  4. 260 MPa tensile

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: (A) 340 MPa compressive

Explanation

The x and y stresses are principal stresses, with the constrained-direction stress between them. Tresca yielding requires $\sigma_x-\sigma_y=300$ MPa. Thus $\sigma_y=-40-300=-340$ MPa. **340 MPa compressive, A**.
