GATE 2019 CE (CE2) – Question 18

Solid Mechanics · Simple bending theory, flexural and shear stresses, shear centre · 1 mark · Multiple choice

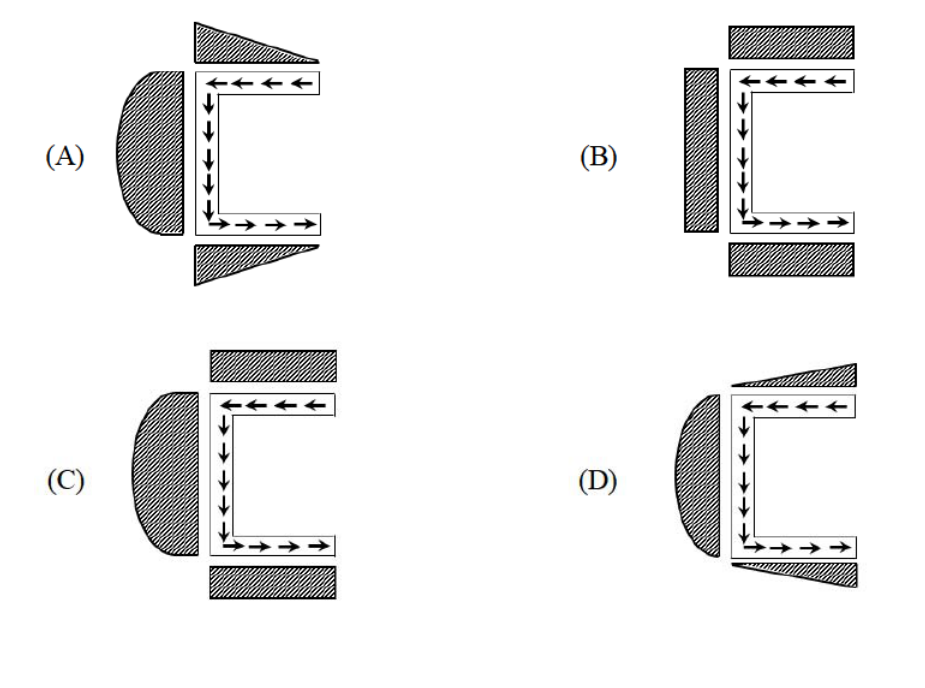

A channel section carries downward vertical shear at its centroid. Which graphical option gives the correct shear-stress distributions in flange and web?

Diagram for GATE 2019 CE (CE2) question 18
  1. Distribution A in the figure
  2. Distribution B in the figure
  3. Distribution C in the figure
  4. Distribution D in the figure

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: (A) Distribution A in the figure

Explanation

Shear flow starts atzero at each free flange tip and increases approximately linearly towards the web. In the web,the first-moment relationτ=VQ/(It) produces a curved distribution with its maximum near the neutral axis. The opposing flange directions and downward web flow shown in **A** satisfy these conditions.
