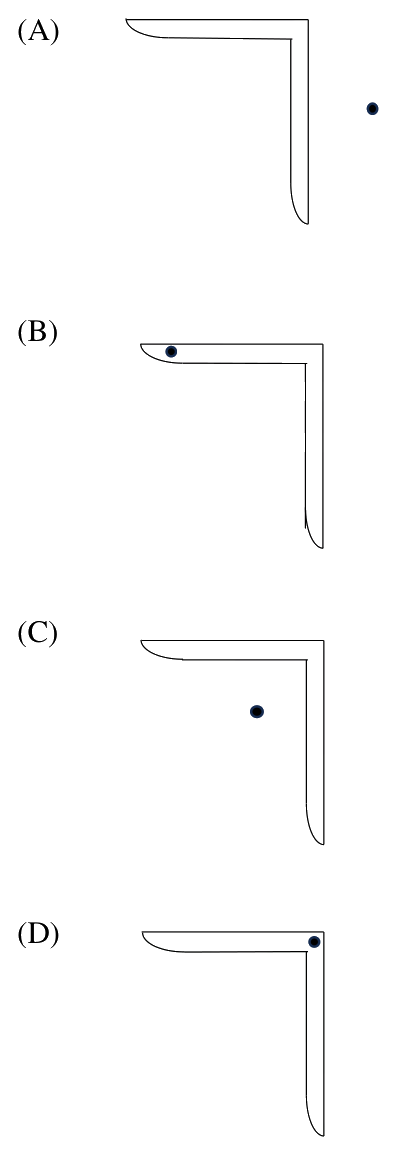

Black dot shown in the figure qualitatively represents the shear centre of the angle section. The option which represents the position of the shear centre is:
For an angle section the shear centre lies at the point where the centre lines of the two thin legs meet. That is the corner of the angle, which is option D.
