GATE 2023 CE (CE1) – Question 55

Solid Mechanics · Simple bending theory, flexural and shear stresses, shear centre · 2 marks · Numerical answer

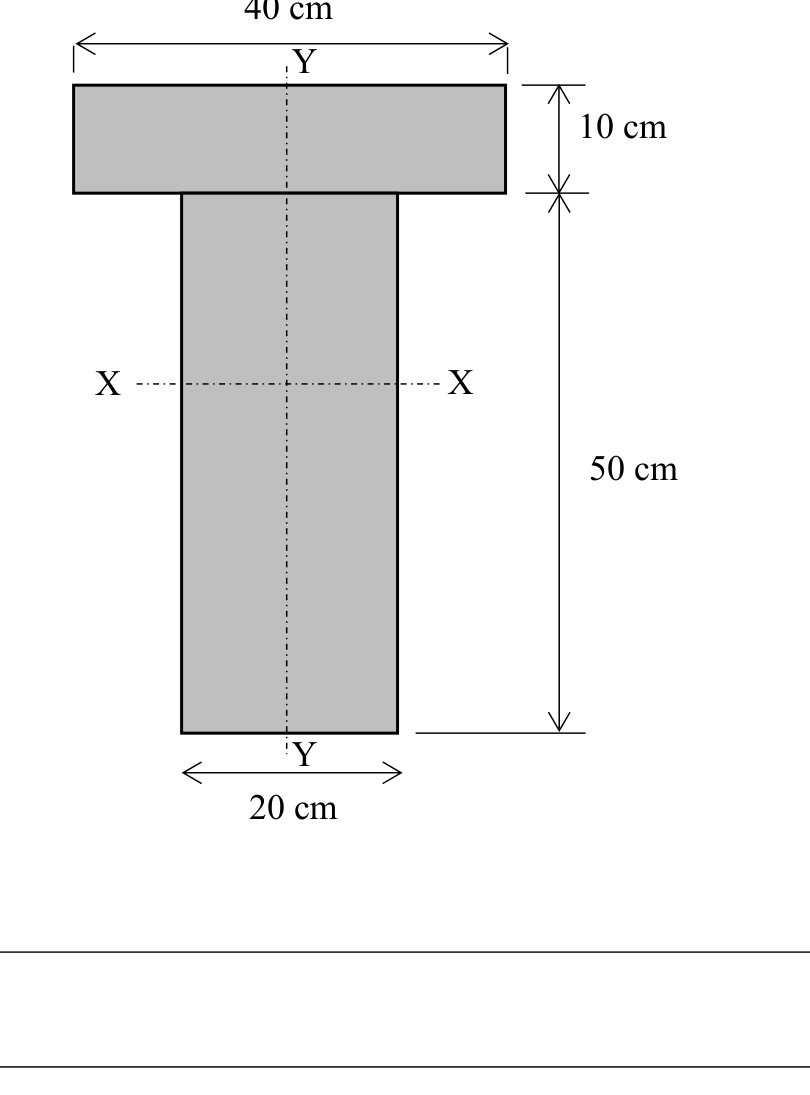

The cross-section of a girder is shown in the figure (not to scale). The section is symmetric about a vertical axis (Y-Y). The moment of inertia of the section about the horizontal axis (X-X) passing through the centroid is _____ cm$^4$ (round off to nearest integer).

a T-shaped section. The top flange is 40 cm wide and 10 cm thick. The web below is 20 cm wide and 50 cm deep.

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: 468810

Explanation

Measure from the bottom of the web. The web ($20 \times 50 = 1000$ cm²) has its centroid at 25 cm and the flange ($40 \times 10 = 400$ cm²) at 55 cm. The centroid is at $\bar{y} = \frac{1000 \times 25 + 400 \times 55}{1400} = 33.57$ cm. By the parallel axis theorem, $I = \frac{20 \times 50^3}{12} + 1000 \times (33.57 - 25)^2 + \frac{40 \times 10^3}{12} + 400 \times (55 - 33.57)^2 = 208333 + 73469 + 3333 + 183673 = 468809.5 \approx 468810$ cm⁴.
