GATE 2022 CY – Question 42

Inorganic Chemistry · Solids: Crystal systems and lattices, Miller planes, crystal packing, crystal defects, Bragg’s law, ionic crystals, structure of AX, AX2, ABX3 type compounds, spinels, band theory, metals and semiconductors, Zeolites and their applications. · 2 marks · Multiple choice

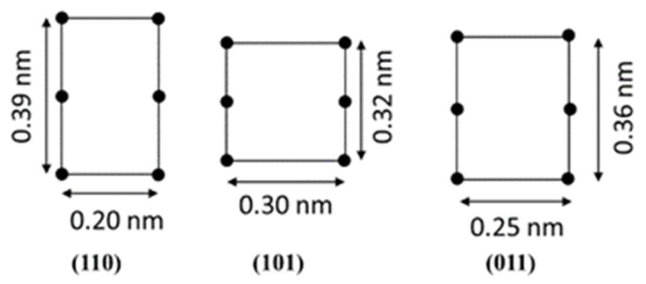

Three different crystallographic planes of a unit cell of a metal are given below (solid circles represent atom). The crystal system of the unit cell is

Diagram for GATE 2022 CY question 42
  1. triclinic
  2. monoclinic
  3. tetragonal
  4. orthorhombic

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: (D) orthorhombic

Explanation

All three plane nets are rectangular, consistent with mutually perpendicular cell axes. Their unequal dimensions require three unequal lattice parameters, a≠b≠c, which excludes tetragonal equality.

Therefore the system is **orthorhombic, D**, rather than monoclinic/triclinic cells with nonright interaxial angles.
