GATE 2021 MT – Question 37

Manufacturing Processes · Metal forming · 2 marks · Multiple choice

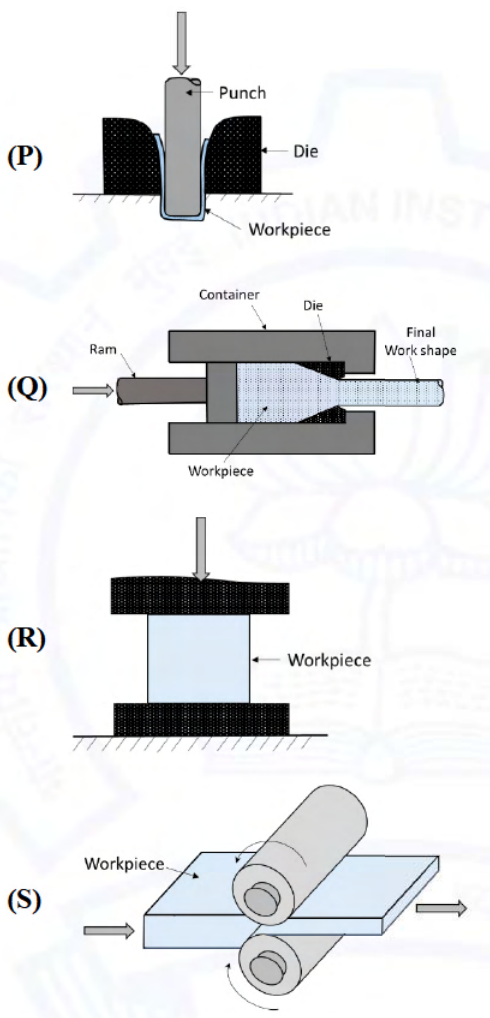

Match forming-process diagrams P–S in Column I to names in Column II.

1. Extrusion

2. Rolling

3. Deep drawing

4. Open-die forging

Diagram for GATE 2021 MT question 37
  1. P–1, Q–2, R–3, S–4
  2. P–3, Q–1, R–4, S–2
  3. P–3, Q–4, R–1, S–2
  4. P–1, Q–4, R–3, S–2

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: (B) P–3, Q–1, R–4, S–2

Explanation

P draws a sheet into a cup: deep drawing (3). Q pushes a billet through a die: extrusion (1). R compresses between flat dies: open-die forging (4). S passes a sheet between rolls: rolling (2).

Thus **B**.
