GATE 2016 ME (ME1) – Question 42

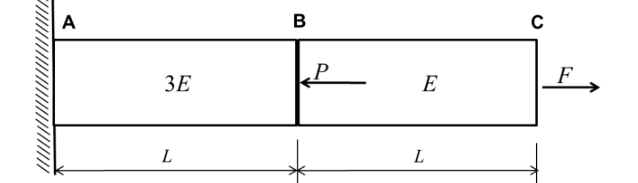

A horizontal bar with a constant cross-section is subjected to loading as shown in the figure. The Young’s moduli for the sections AB and BC are 3E and E, respectively. For the deflection at C to be zero, the ratio P/F is ____________
Practise this question in The GATE Grind →
Show answer and explanation
Correct answer: 3.9 to 4.1
Explanation
The right segment carries tensile force F; the left carries signed force F−P. Total displacement is(F−P)L/(3EA)+FL/(EA). Setting it to zero and multiplying by3EA/L gives F−P+3F=0. Hence **P/F=4**; the left segment compresses while the right extends.
