GATE 2025 EC – Question 65

Electromagnetics · Maxwell's Equations · 2 marks · Numerical answer

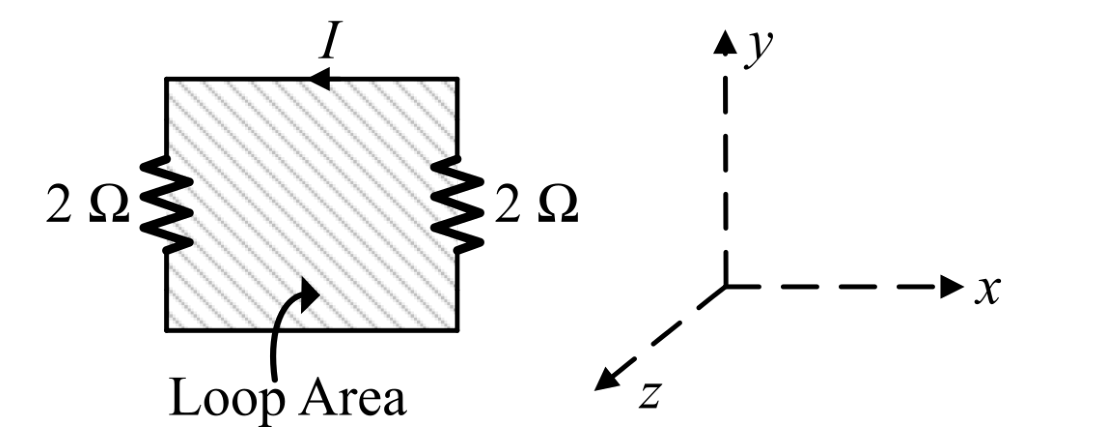

Two resistors are connected in a circuit loop of area 5 m$^2$, as shown in the figure below. The circuit loop is placed on the $x$-$y$ plane.

When a time-varying magnetic flux-density $B(t)=0.5t$ (in Tesla), is applied along the positive $z$-axis, the magnitude of current $I$ (in Amperes, rounded off to two decimal places) in the loop is ________.

Diagram for GATE 2025 EC question 65

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: 0.62 to 0.63

Explanation

Faraday's law: the induced emf magnitude is $\dfrac{d\Phi}{dt}$. With $B=0.5t$ T and area 5 m$^2$, $\Phi=2.5t$ Wb, so emf $=2.5$ V.

The loop contains two 2 $\Omega$ resistors in series ($R=4\ \Omega$), so $I=\dfrac{2.5}4=0.625\approx0.63$ A.
