GATE 2014 EC (EC2) – Question 21

Analog Circuits · BJT and MOSFET Amplifiers · 1 mark · Multiple choice

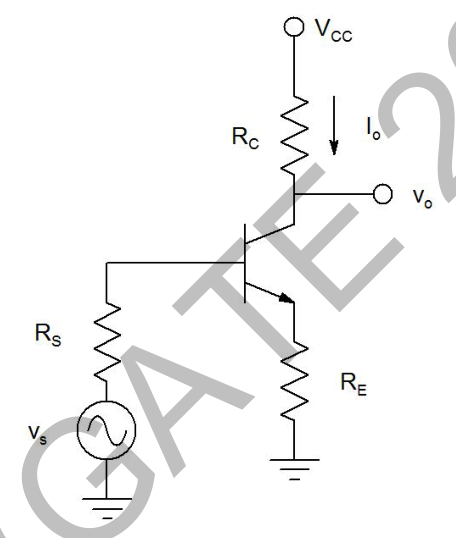

Identify the feedback topology of the amplifier shown. Base-bias circuitry is omitted for simplicity.

Diagram for GATE 2014 EC (EC2) question 21
  1. Voltage shunt
  2. Current series
  3. Current shunt
  4. Voltage series

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: (B) Current series

Explanation

The emitter resistor develops a feedback voltage proportional to emitter current, which closely tracks collector/output current. This voltage subtracts in series from the applied base-emitter input voltage. The circuit therefore samples current and mixes a series voltage: **current-series feedback,B**.
