GATE 2026 EE – Question 27

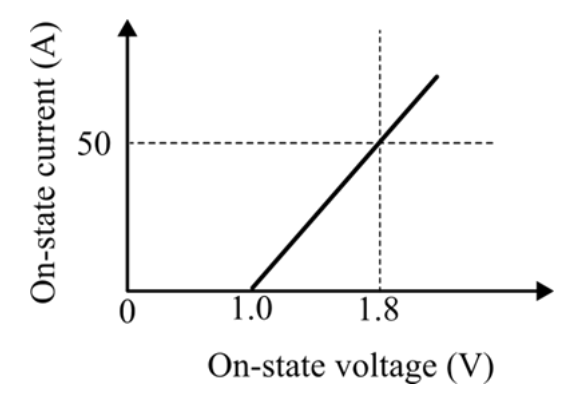

The figure shows a straight-line approximation for the forward characteristics of a power diode. A continuous on-state current of 15 A is flowing through the diode.
What is the power loss in the diode?

Practise this question in The GATE Grind →
Show answer and explanation
Correct answer: (C) 18.6 W
Explanation
From the plot the diode has a threshold voltage $V_0=1.0$ V at zero current and reaches 1.8 V at 50 A, so the slope (on-state resistance) is $r=\dfrac{1.8-1.0}{50}=0.016\ \Omega$. At 15 A the on-state voltage is $1.0+0.016\times15=1.24$ V. The loss is $1.24\times15=18.6$ W.
