GATE 2025 EE – Question 56

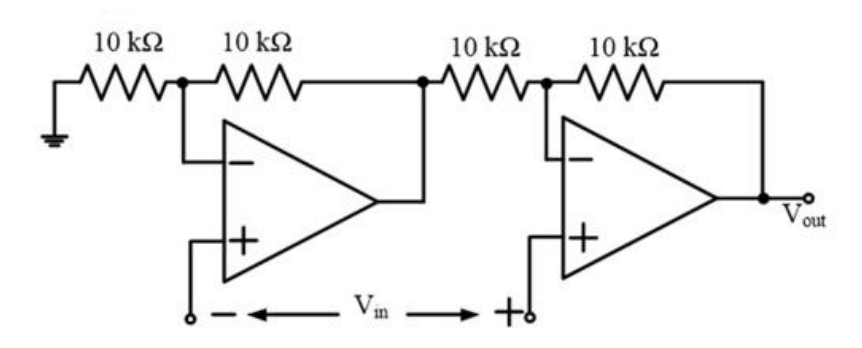

The op-amps in the following circuit are ideal. The voltage gain of the circuit is _____ (round off to the nearest integer).

Practise this question in The GATE Grind →
Show answer and explanation
Correct answer: 2
Explanation
Call the two input terminals $V_-$ (at the first op-amp's non-inverting input) and $V_+$ (at the second op-amp's non-inverting input), so $V_{in}=V_+-V_-$.
- Stage 1 is a non-inverting amplifier with two equal $10\ \text{k}\Omega$ resistors, so its gain is $1+\dfrac{10}{10}=2$ and $V_{o1}=2V_-$.
- Stage 2 has $V_{o1}$ applied through a $10\ \text{k}\Omega$ resistor to its inverting node, a $10\ \text{k}\Omega$ feedback resistor, and $V_+$ at its non-inverting input. By superposition, $V_{out}=\left(1+\dfrac{10}{10}\right)V_+-\dfrac{10}{10}V_{o1}=2V_+-2V_-$.
So $V_{out}=2(V_+-V_-)=2V_{in}$ and the voltage gain is 2.
