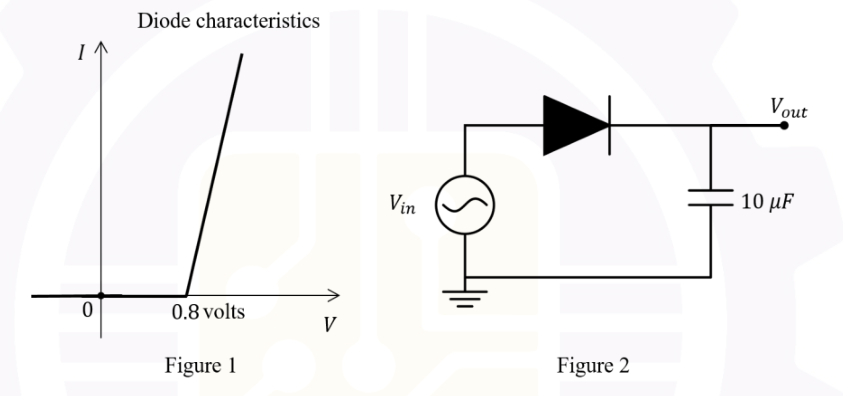

A diode has the I–V characteristic shown, with knee voltage 0.8 V. It feeds the initially discharged 10 μF capacitor from V in=100(1000t) V. Reverse breakdown greatly exceeds 100 V. Find steady-state capacitor voltage Vout in volts.

GATE 2026 BM – Question 28

Analog and Digital Electronics · Semiconductor Devices · 1 mark · Multiple choice

A diode has the I–V characteristic shown, with knee voltage 0.8 V. It feeds the initially discharged 10 μF capacitor from $V_{in}=100\sin(1000t)$ V. Reverse breakdown greatly exceeds 100 V. Find steady-state capacitor voltage Vout in volts.

99.2
$99.2\cos(1000t)$
$99.2\sin(1000t)$
−99.2

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: (A) 99.2

Explanation

During positive peaks the diode charges the capacitor until its voltage is the peak input minus the forward drop: 100−0.8=99.2 V. There is no discharge load, and the diode blocks the reverse half-cycle, so the capacitor retains this DC peak-detector voltage. Thus A.
