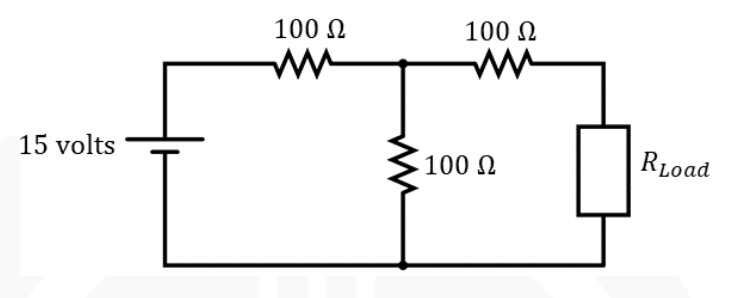

Remove RLoad to find the open-circuit voltage. No current flows through the right-hand series 100 Ω resistor, so it has no voltage drop. The remaining two 100 Ω resistors divide fifteen volts equally, giving Vth=15/2=7.5 V, A.
