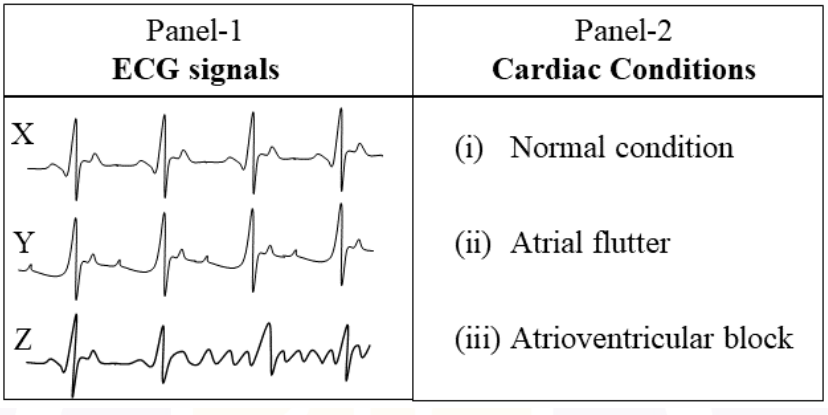

X has the ordinary repeating P–QRS–T relationship and is matched to normal rhythm. Y shows impaired atrioventricular conduction in the schematic, matched to AV block. Z has repeated sawtooth-like atrial activity between QRS complexes, characteristic of atrial flutter. Thus X–i,Y–iii,Z–ii, A.
More Biopotentials and Electrodes questions
GATE 2025 BM Q28– In a human ECG, atrial repolarization is usually masked by which component?
GATE 2025 BM Q31– A low-pass filter with 250 Hz cutoff is NOT suitable for recording which signal?
GATE 2024 BM Q45– To isolate alpha EEG, the diagram cascades ideal high-pass cutoff fh,low-pass cutoff…
GATE 2024 BM Q49– Which changes are typical in surface EMG during muscle fatigue?
GATE 2024 BM Q58– An ECG channel has bandwidth 0.5–100 Hz. A single ADC digitizes eight channels. Find the…
GATE 2023 BM Q34– At a given time, a cardiac dipole of magnitude 3 mV is oriented at −45° to the horizontal…
