GATE 2019 EC – Question 25
Digital Circuits · Combinatorial Circuits · 1 mark · Multiple choice

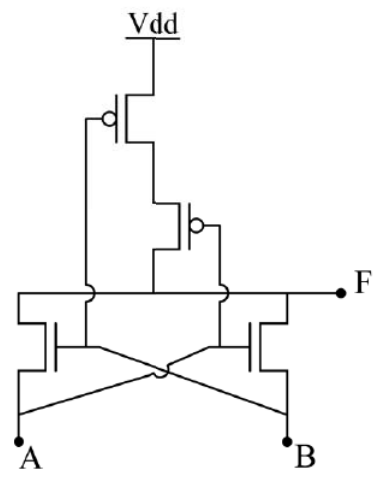

In the circuit shown, A and B are the inputs and F is the output. What is the functionality of the circuit?

- Latch
- XNOR
- SRAM Cell
- XOR
Practise this question in The GATE Grind →
Show answer and explanation
Correct answer: (B) XNOR
Explanation
The circuit passes $B$ to the output when $A$ is high and $\bar B$ when $A$ is low, giving $F=AB+\bar A\bar B$, which is an XNOR gate.
