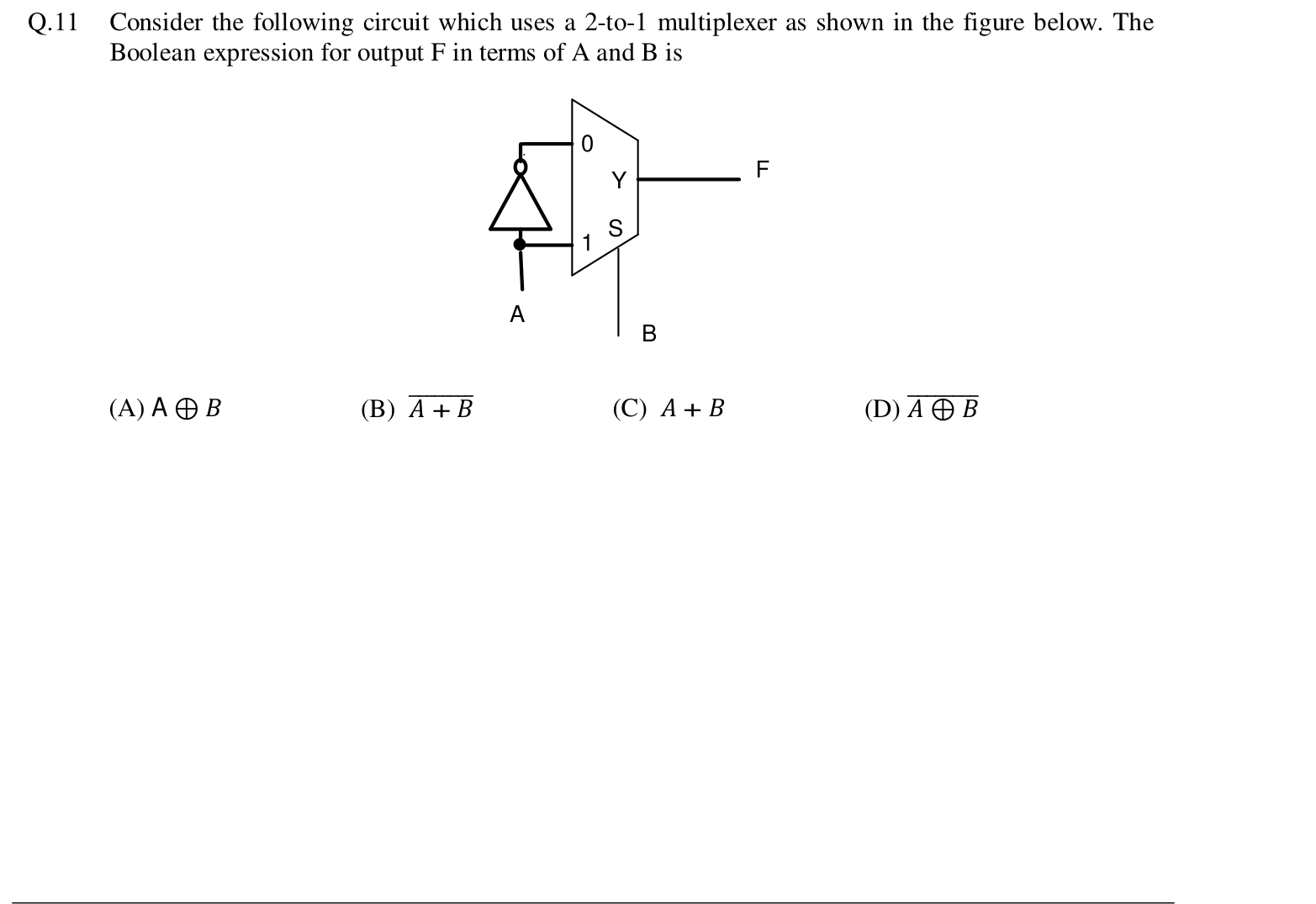

Consider the following circuit which uses a 2-to-1 multiplexer as shown in the figure below. The Boolean expression for output F in terms of A and B is
The multiplexer outputs input 0 when $B = 0$ and input 1 when $B = 1$. So $F = \bar{B}\bar{A} + BA$. This is 1 when $A$ and $B$ are equal, which is the complement of the exclusive-OR, $\overline{A \oplus B}$.
