GATE 2015 EE – Question 25
Analog and Digital Electronics · VCOs and timers, combinatorial and sequential logic circuits, multiplexers, demultiplexers · 1 mark · Multiple choice

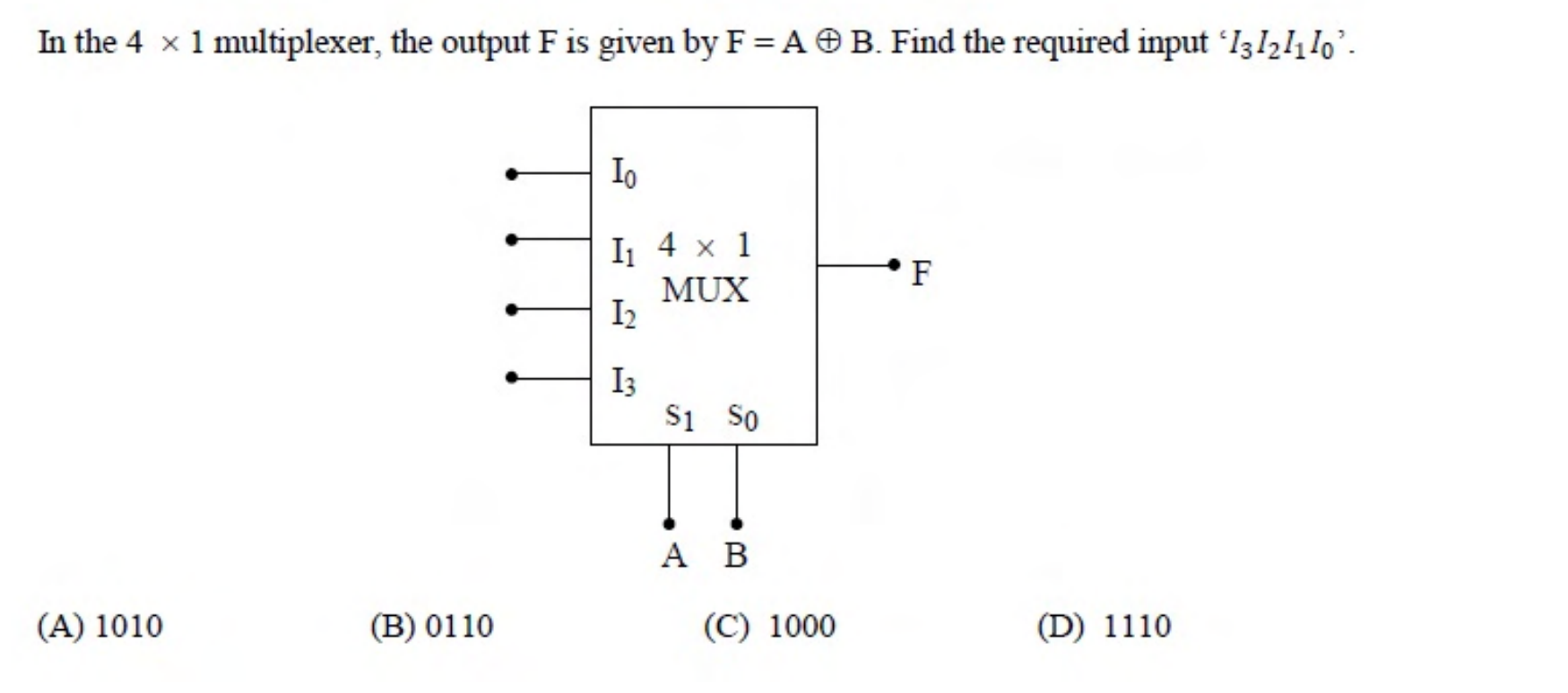

In the $4 \times 1$ multiplexer, the output F is given by $F = A \oplus B$. Find the required input '$I_3 I_2 I_1 I_0$'.

- 1010
- 0110
- 1000
- 1110
Practise this question in The GATE Grind →
Show answer and explanation
Correct answer: (B) 0110
Explanation
With $S_1 S_0 = AB$, the input $I_k$ is chosen when $AB = k$. So $I_0 = F(0,0) = 0$, $I_1 = F(0,1) = 1$, $I_2 = F(1,0) = 1$ and $I_3 = F(1,1) = 0$. The inputs $I_3 I_2 I_1 I_0$ are 0110.
