GATE 2015 EC – Question 22

Analog Circuits · Diode Circuits · 1 mark · Numerical answer

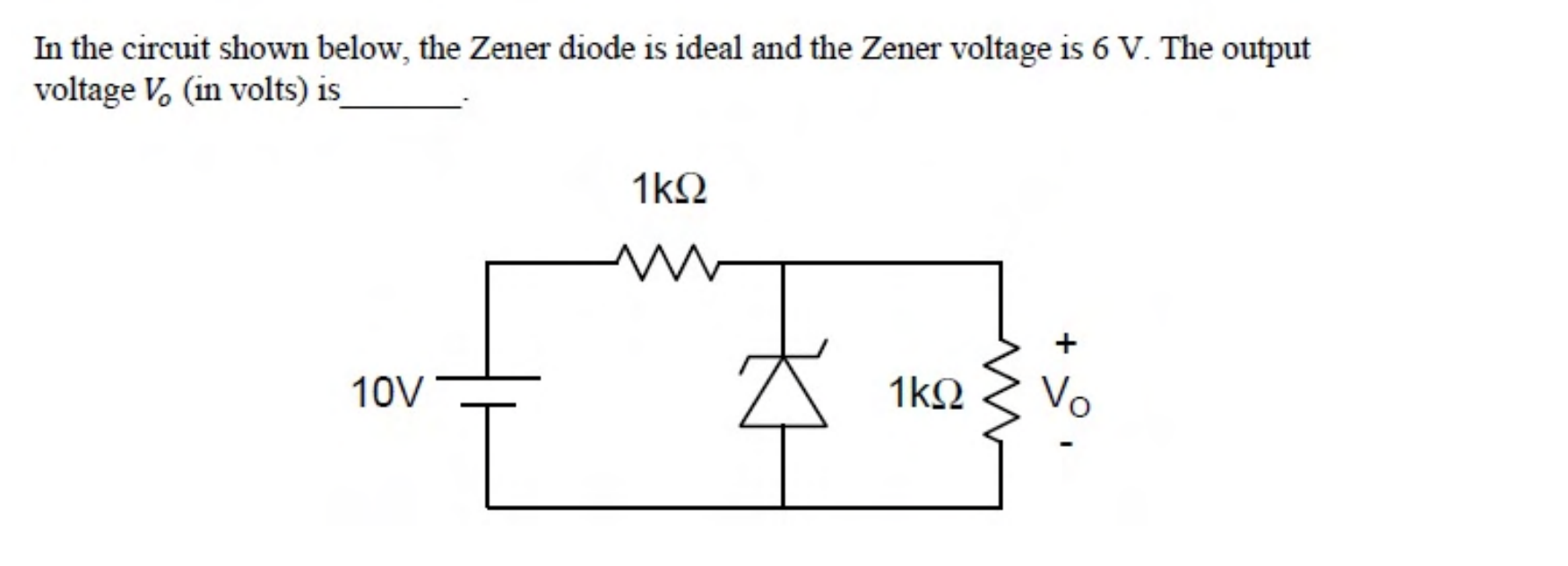

In the circuit shown below, the Zener diode is ideal and the Zener voltage is 6 V. The output voltage $V_o$ (in volts) is ________.

Diagram for GATE 2015 EC question 22

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: 5

Explanation

Find the voltage across the load assuming the Zener is OFF, then check it against $V_Z$.

With the Zener removed, the two $1\ \text{k}\Omega$ resistors form a divider on the 10 V source: $V_o=10\times\dfrac{1}{1+1}=5$ V.

Since $5\text{ V}<V_Z=6$ V, the Zener is not driven into breakdown, so it carries no current and the assumption holds. $V_o=5$ V.
