GATE 2024 ME – Question 9

General Aptitude · Spatial Aptitude: Spatial Reasoning and Visualization · 2 marks · Multiple choice

A planar rectangular paper has two V-shaped pieces attached as shown below.

This piece of paper is folded to make the following closed three-dimensional object.

The number of folds required to form the above object is

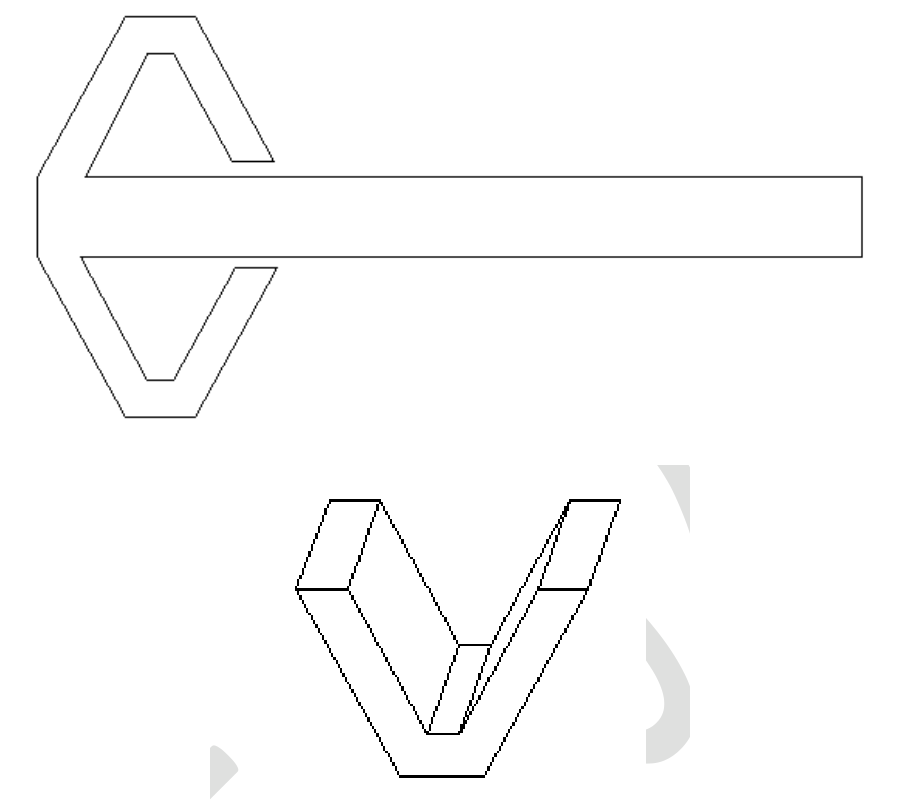

Diagram for GATE 2024 ME question 9
  1. 9
  2. 7
  3. 11
  4. 8

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: (A) 9

Explanation

The solid is a prism with a thick V-shaped cross-section. Trace one V-shaped end boundary: it has eight straight sides, including the short flat bottom of the inner notch and the outer bottom.

The rectangular strip wraps around those eight sides and therefore needs eight side panels separated by **seven folds**. Its two free edges meet at a closing seam; joining that seam is not an additional fold.

Each of the two attached V-shaped end pieces needs one hinge fold to close an end. The total is **7+1+1=9 folds, A**.

The end pieces remain planar. The count does not require inventing folds through their interiors; it requires counting all eight strip panels correctly.
