GATE 2021 CE (CE2) – Question 39

Structural Analysis · Statically indeterminate structures: force and displacement methods · 2 marks · Multiple choice

Frame EFG has fixed base E, vertical column EF=2L and horizontal beam FG=L ending in a roller at G. All members have equal EI; FG carries UDL w. Neglect axial deformation. Find vertical reaction at G.

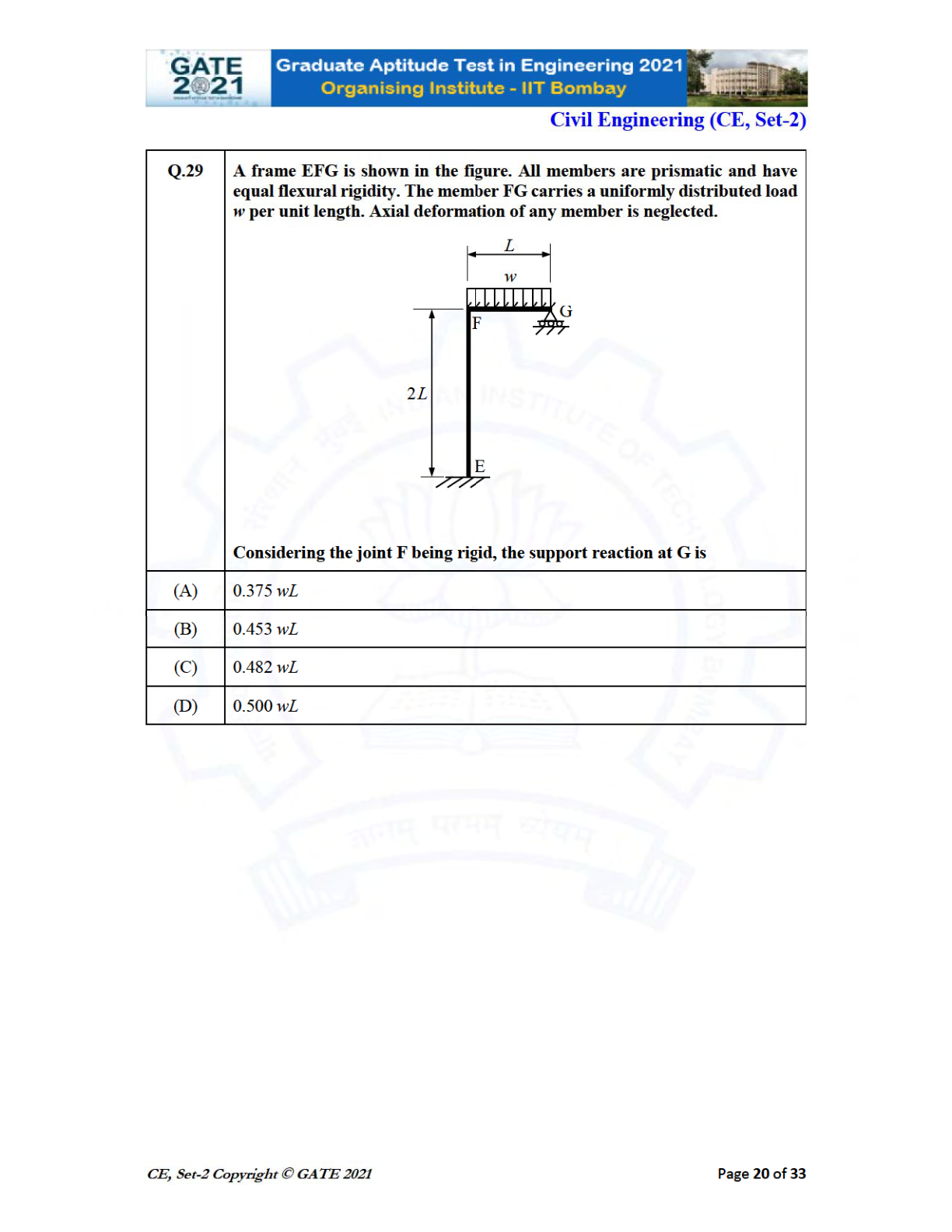

the source diagram and labels are reproduced in the attached image.
  1. 0.375wL
  2. 0.453wL
  3. 0.482wL
  4. 0.500wL

Practise this question in The GATE Grind →

Show answer and explanation

Correct answer: (C) 0.482wL

Explanation

The column has no applied horizontal resultant, so its top rotational stiffness after allowing sway is EI/(2L). Beam FG, with its far end hinged, has rotational stiffness 3EI/L and fixed-end moment magnitude wL²/8. Joint balance gives rotation wL³/(28EI) and beam end moment −wL²/56. Hence $R_G=wL/2-wL/56=27wL/56=\mathbf{0.48214wL}$, **C**.
